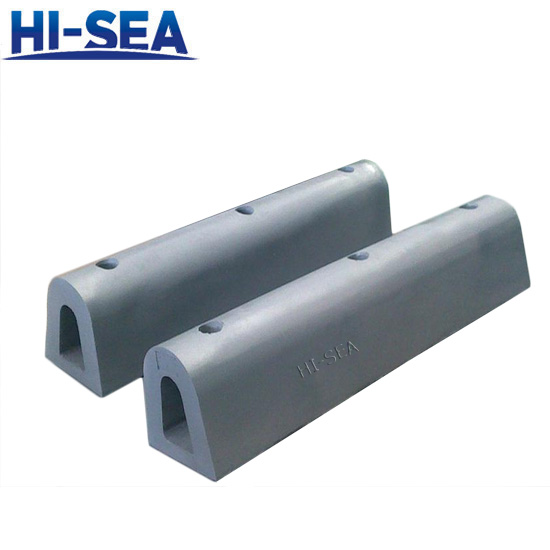

D Type Rubber Fender

D Type Rubber Fender

Drawing and Specification of D Type Rubber Fender Type A:

Type	H	B	L	Q	C	h	D	d	holes
DA150X150X1000	150	150	1000	350	150	25	40	24	3
DA200X200X1000	200	200	1000	350	150	35	55	30	3
DA200X200X3000	200	200	3000	400	100	35	55	30	8
DA250X250X1000	250	250	1000	350	150	35	60	30	3
DA250X250X3000	250	250	3000	400	100	35	60	30	8
DA300X300X1000	300	300	1000	350	150	40	65	32	3
DA300X300X3000	300	300	3000	400	100	40	65	32	8
DA300X360X1000	300	360	1000	350	150	40	65	32	3
DA300X360X3000	300	360	3000	400	100	40	65	40	8
DA400X400X1000	400	400	1000	400	150	55	80	32	3
DA400X400X3000	400	400	3000	400	100	55	80	40	8
DA500X500X1000	500	500	1000	350	150	90	97	45	3
DA500X500X3000	500	500	3000	400	100	90	97	45	8

Drawing and Specification of D Type Rubber Fender Type B:

H (mm)	B (mm)	C (mm)	D (mm)	E (mm)
DB100x100	25.0	30	15	25
DB150x150	37.5	40	20	30
DB200x200	50.0	50	25	45
DB250x250	62.5	60	30	45
DB300x300	75.0	60	30	60
DB350x350	87.5	75	35	70
DB380x380	95.0	75	35	80
DB400x400	100.0	75	35	80
DB500x500	125.0	90	45	90

Drawing and Specification of D Type Rubber Fender Type C:

H (mm)	D (mm)	E (mm)
DC100x100	15	25
DC150x150	20	30
DC200x200	25	45
DC250x250	30	50
DC300x300	30	60
DC350x350	35	70
DC400x400	35	80
DC500x500	45	90

If you need fixing parts of the D type rubber fender please contact us.

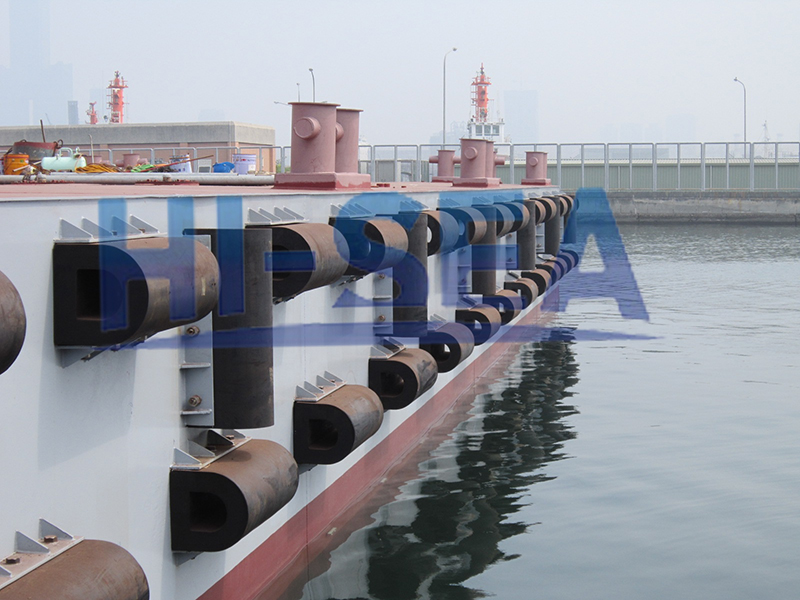

Installation of D Type Rubber Fender:

Application:
