Yokohama Fender - Marine Rubber Fender - Hi-sea

Yokohama Fender

Yokohama Fender

Yokohama Fender

Application: Pneumatic rubber fender is a kind of ship accessory that buffers and protects the ship upon berthing and now is widely used in ships, ocean platform, offshore facilities, wharf and yacht etc. Fender which is made of synthetic-cord-reinforced rubber sheet with compressed air inside to enable it to float on the water and work as a shock absorb-er between two ships, or between ships and berthing structures when they come alongside each other on the water. At the same time pneumatic rubber fender could absorb the impact energy of ship motion, reduce the recoil force of the ship, greatly improved the security of the ship docked. The fenders have sometimes been colloquially referred to as “Yokohama fenders” or “Yokohama type fenders”.

Fender types are defined as follows:

a) Type I — net type;

b) Type II — sling type.

Net-type fender definition: Fender which is covered by a protection net consisting of either chain, wire or fibre and usually with tier or rubber sleeves.

Reasons for Choosing Hi-Sea Marine:

1. Experienced, Reputable Supplier;

2. Supply a Large Range of Marine Equipment;

3. High Quality Products;

4. Reasonable and Competitive Price;

5. Short Delivery;

6. Excellent One-Stop Service;

7. Meet All the Requirements of Customers;

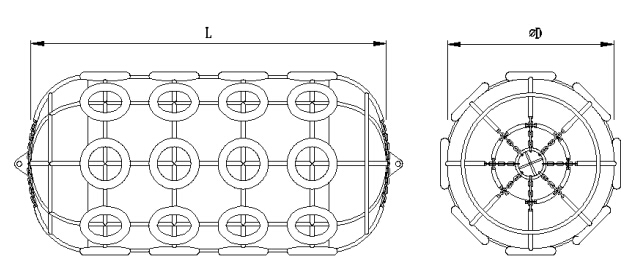

Drawing of Keyhole Rubber Fender:


Choice Examples of Dependable Balls for Medium-Size & Marines


Shipping tonnage


Size of dependable ball(D×Lm)


Remarks


50

0.5×1.0

Fisher


100

0.7×1.5-1.0×1.5

Fisher


200

1.0×1.8-1.0×2.0

Fisher,Tugboat


300-500

1.2×2.0-1.5×2.5

Fisher,Tugboat


1000

1.5×2.5-1.5×3.0

Tugboat,Transport vessel


3000

2.0×3.0-2.0×3.5

Ocean dragnet vessel,Transport vessel


10000

2.0×3.5-2.5×5.0

Transport vessel



Choice Examples of Dependable Balls for Large-Size Oil Marine

A Vessel(DWT)


B Vessel(DWT)


Assumed string meeting velocity(m/s)


Effective movement energy(KJ)


Size of dependable ball(D×L)


300,000

200,000

0.15

1230

3.3×6.5

150,000

0.15

1030

3.3×6.5

100,000

0.15

781

3.3×6.5

200,000

150,000

0.15

882

3.3×6.5

100,000

0.15

693

3.0×6.0

85,000

0.15

618

3.0×5.0

100,000

85,000

0.17

617

3.0×5.0

50,000

0.18

511

3.0×5.0

40,000

0.20

544

3.0×5.0

50,000

40,000

0.20

425

2.5×5.5

30,000

0.22

437

2.5×5.5

20,000

0.25

443

2.5×5.5

20,000

15,000

0.27

318

2.5×4.0

10,000

0.30

309

2.0×3.5

5,000

0.35

253

2.0×3.5

10,000

5,000

0.35

212

2.0×3.5

3,000

0.40

196

2.0×3.5

1,000

0.50

127

2.0×3.0


Marine rubber fender in factory ready for shipping:

rubber fender
