Portable Water Foam Fire Monitor - Fire Monitor - Hi-sea

Portable Water Foam Fire Monitor

Portable Water Foam Fire Monitor


Description:

Portable water foam fire monitor is developed by our company according to the structure of foreign water foam fire monitor. The body of this fire monitor can do horizontal and vertical rotation. It also can lock by itself after locating the fire. This water foam fire monitor is widely applied in large-scale places which are difficult to install fixed fire monitor. It can be connected to a firefighting truck or a fixed fire pump with a fire hose.

Product Superiority:

1. Easy to maintain

2. Flexible to operate

3. Movable

Product Detail:

PLKDY:

Model
Flow range(L/S)
Jetting range
(≥m)

Working pressure

(Mpa)

Pitching
angle(°)
Rotation
angle(°)
Voltage
Remote control
distance(≥m)
Weight(≤kg)
Connecting
way
Water
Foam
PLKDY32
32 55 48 0.8
+30~+70
±90
24V/DC
150
30
KY80 or KYK80
PLKDY48
48 70 60
PLKDY60
60 75 70

PLY:

Model
Flow range(L/S)
Jetting range
(≥m)
Working pressure(Mpa)
Pitching
angle(°)
Rotation
angle(°)
Connecting
way
Water
Foam
PLY24
24 45 40 0.5~1.2
-30~+70
0-360
connecting
flange
PLY32
32 50 45
PLY40
40 55 50
PLY48
48 60 55

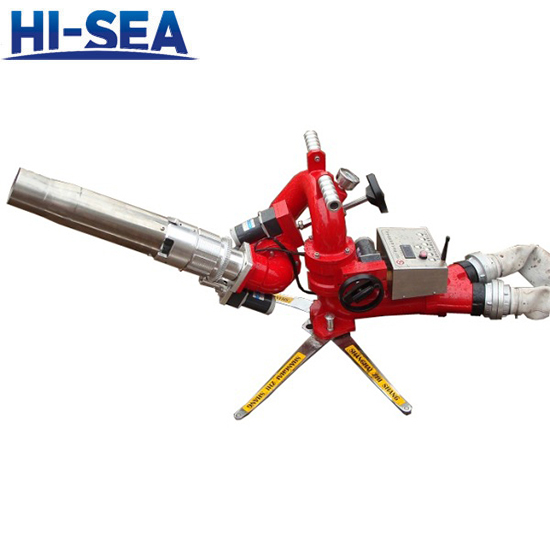

Picture of PLY:



Picture 1 of PLKDY:


Picture 2 of PLKDY:
