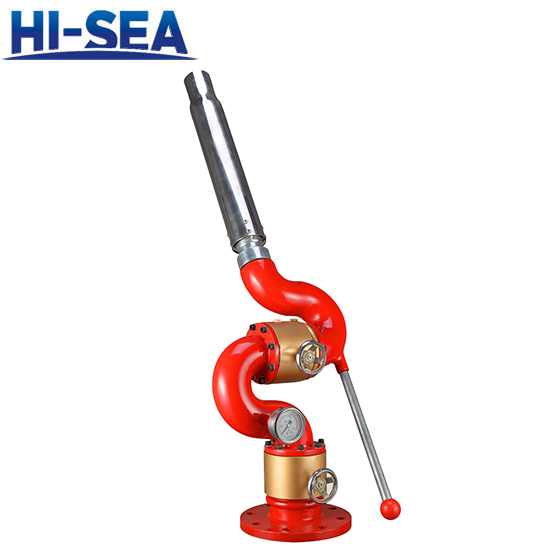

Manual Water Foam Fire Monitor



Manual Water Foam Fire Monitor


Description:

Manual water foam fire monitor can produce and spray foam to put out liquid fire. It can also be used as fire water monitor to put out solid fire. The operating handle enables this water foam fire monitor to rotate horizontally and vertically. It is widely used for petrochemical enterprises, tank farms, hangars, warehouses, fire-fighting truck, ports, terminals and ships.

Product Superiority:

1. Low inlet pressure

2. Simple structure

3. Small size

Product Detail:

Model
Flow range
(L/S)
Jetting range(≥m)
Rated pressure
(Mpa)
Foaming multiple
(at 20℃)
25% drainage
time/min
(at 20℃)
Foam mixing
ratio(%)
Pitching angle
(°)
Rotation angle
(°)
Weight(≤kg)
Connecting
flange
Water
Foam
PL24
24 45
40
0.8
≥6
≥2.5
6〜7 or 3〜4
-30〜+70 or -70〜+70
0-360
30
DN100
PL32
32 50
45
55
PL40
40 55
50
55
PL48
48 60
55
65
PL64
64 65
60
1
65
PL80
80 75
70
65
PL100
100 80
75
95
PL120
120 85
80
95
DN150
PL150
150 90
85
1.4
125
PL180
180 95
90
125
DN200
PL200
200 100
95
125

Structure of Manual Water Foam Fire Monitor:

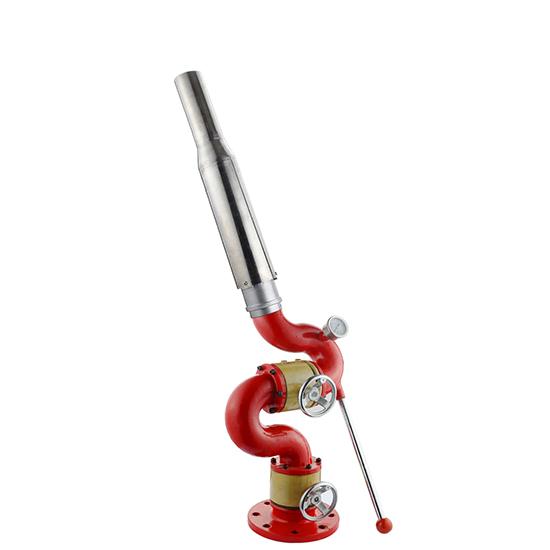

Picture 1 of Manual Water Foam Fire Monitor:


Picture 2 of Manual Water Foam Fire Monitor:
