Marine Fire Monitor

Marine Fire Monitor

Description:

Marine fire monitor is a device used on ships and other marine vessels to control and extinguish fires. It typically consists of a large water cannon or nozzle, mounted on a rotating turret, which can be aimed and operated remotely from a control station on board the ship. The monitor is usually connected to a water source, such as the ship's firefighting system or a dedicated fire pump, and can deliver large volumes of water at high pressure to quickly douse flames in the event of a fire. Some monitors may also be equipped with foam or chemical agents to help extinguish fires involving flammable liquids or gases. Marine fire monitors are an essential safety feature on any vessel that operates in potentially hazardous environments, such as oil rigs or chemical tankers. They are often required by regulatory bodies such as the International Maritime Organization (IMO) and must meet specific design and performance standards to ensure their effectiveness in an emergency.

Product Superiority:

Marine fire monitors are designed to deliver large volumes of water at high pressure to quickly extinguish fires.

The monitor is typically mounted on a rotating turret, which allows it to be aimed in any direction to target the fire.

The monitor can be operated remotely from a control station on board the ship, allowing firefighters to stay at a safe distance from the fire.

Some marine fire monitors may have multiple nozzles or settings to provide different spray patterns, which can be useful for tackling different types of fires.

Since marine environments can be corrosive, marine fire monitors are often made from materials that are resistant to corrosion, such as stainless steel or bronze.

Some monitors may also be equipped with a foam or chemical injection system, which can help to extinguish fires involving flammable liquids or gases.

Marine fire monitors are designed to be easy to install and maintain, with simple connections to the ship's firefighting system and minimal moving parts that require regular maintenance.

Product Detail:

PP24C (big):

Rated pressure: 0.5~1Mpa

Flow: 24L/S (foam/water)

Jetting range: ≥40m

Rotation angle: 180°

Pitching angle: -60～＋70

Foaming multiple(at 20℃): ≥6

25% drainage time/min(at 20℃): ≥2.5

Water yield: 85T/h

Connecting flange: DN80

PSC30:

Rated pressure: 0.8Mpa

Flow: 30-50L/S

Rotation angle: 360°

Pitching angle: -30～＋60°

PSY:

Flow: ≥1000L/min

Jetting range: ≥40m

Rated pressure: 0.4MPa

Horizontal rotation angle: 270°/

Pitching angle: 0～ +90

Control mode: manual operation

Jetting type: jetting/spraying

Connecting flange: DN50

Weight: 22KG

PP23C/PP24C:

Model	Rated pressure(Mpa)	Jetting range(≥m)	Pitching angle(°)	Rotation angle(°)	Foaming multiple(at 20℃)	25% drainage time/min(at 20℃)	Water yield(T/h)	Connecting flange
PP24C(small)	0.5~1	40	-60～＋70	±180	≥6	≥2.5	40	DN50
PP32C		45					50	DN65

PLC:

Model	Flow range(L/S)	Jetting range （≥m)	Rated pressure(Mpa)	Working pressure(MPa)	Horizontal rotation angle(°)	Pitching angle(°)
PSL20	20	48	0.8	0.4~1.2	360	-30～＋60
PSL25	25	50
PSL30	30	55
PSL40	40	60
PSL50	50	65
PSL60	60	70

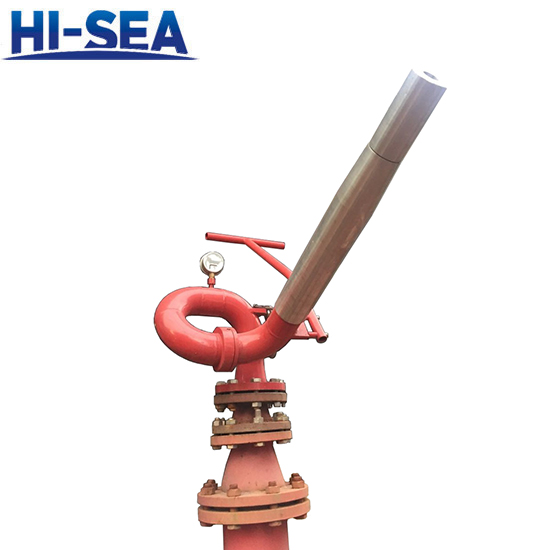

Photo of PP24C (big):

Photo of PSC30:

Photo of PSY:

Photo of PP23C/PP24C (small):

Photo of PLC:
