Explosion-proof Fire Monitor

Explosion-proof Fire Monitor

Description:

Explosion-proof fire monitor is an upgraded version of ordinary fire monitor. Its outer casing is processed to meet the level of explosion- proof. So it is safe to extinguishing the fire in explosive environments. It is mainly used in petrochemical enterprises, tank farms, hangars, warehouses, ports, terminals, fire-fighting trucks, ships, etc. Please do not hesitate to contact us for more details.

Explosion-proof fire monitors are typically made of high-quality materials such as stainless steel or aluminum, and are designed to be corrosion-resistant and durable. They are also equipped with special features such as explosion-proof motors, high-temperature seals, and flame-resistant coatings, to ensure their safety and effectiveness in hazardous environments. Explosion-proof fire monitors come in a variety of sizes and configurations to suit different applications, and can be mounted on a variety of vehicles, including fire trucks, trailers, and boats. They are typically operated remotely by a firefighter using a control panel, and can deliver a high-volume, high-pressure stream of water or foam to extinguish fires.

Product Superiority:

1. Large jetting flow

2. Flexible operation

3. Small size

Product Detail:

PSKD-Ex:

Model	Flow range (L/S)	Jetting range (≥m)	Rated pressure(Mpa)	Pitching angle (°)	Rotation angle (°)	Weight(≤kg)	Connecting flange
PSKD20Ex	20	48	0.8	-30〜+70 or -70〜+70	0-360	25	DN100
PSKD30Ex	30	55				30
PSKD40Ex	40	60				30
PSKD50Ex	50	65				45
PSKD60Ex	60	70	1			45
PSKD70Ex	70	75				45
PSKD80Ex	80	85				45
PSKD100Ex	100	90	1.2			55	DN150
PSKD120Ex	120	95				55
PSKD150Ex	150	100	1.4			105	DN200
PSKD180Ex	180	105				105
PSKD200Ex	200	110				105

PLKD-Ex:

Model	Flow range (L/S)	Jetting range （≥m)		Rated pressure (Mpa)	Foaming multiple (at 20℃)	25% drainage time/min (at 20℃)	Foam mixing ratio(%)	Pitching angle(°)	Rotation angle(°)	Weight (≤kg)	Connecting flange
		Water	Foam
PLKD24Ex	24	45	40	0.8	≥6	≥2.5	6〜7 or 3〜4	-30〜+70 or -70〜+70	0-360	45	DN100
PLKD32Ex	32	55	48							45
PLKD40Ex	40	65	55							45
PLKD48Ex	48	70	60							45
PLKD64Ex	64	75	70	1						55
PLKD80Ex	80	85	80							55
PLKD100Ex	100	90	85	1.2						95
PLKD120Ex	120	95	90							95	DN150
PLKD150Ex	150	100	95	1.4						125
PLKD180Ex	180	105	100							125	DN200
PLKD200Ex	200	110	105							125

ZDMS-Ex:

Model	Flow range (L/S)	Rated pressure (Mpa)	Working pressure (Mpa)	Protection radius (m)	Rotation angle (°)	Fire locating time(s)	Working temperature (℃)	Connecting way	Installation way	Installation height(m)
ZDMS0.8 /20S/Ex	20	0.8-0.9	0.6-1	50	0-360	≤60	-10~55	DN65 connecting flange	hoisting	6~25
ZDMS0.9 /30S/Ex	30			55

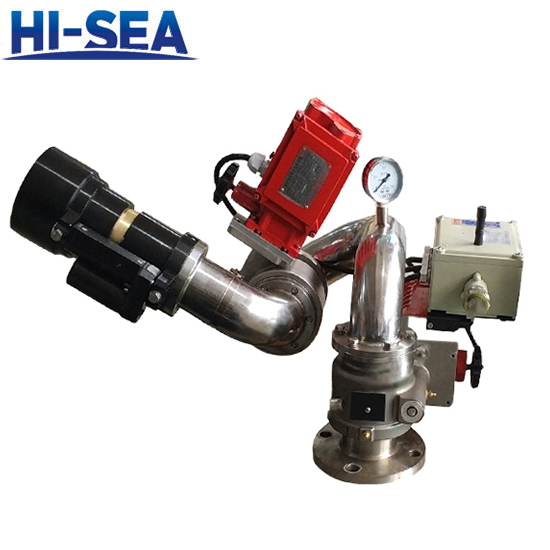

Photo of PSKD-Ex:

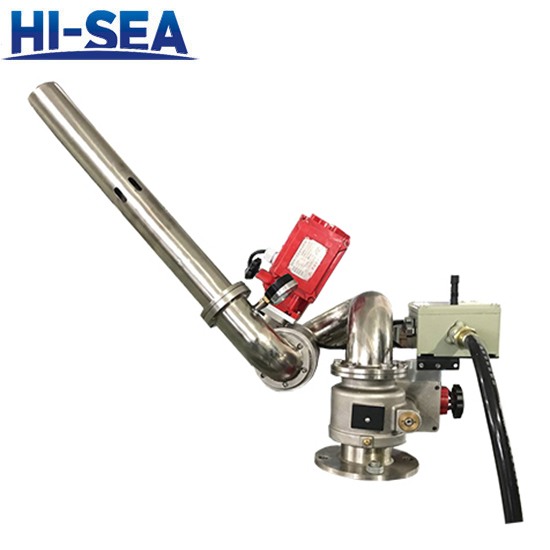

Photo of PLKD-Ex:

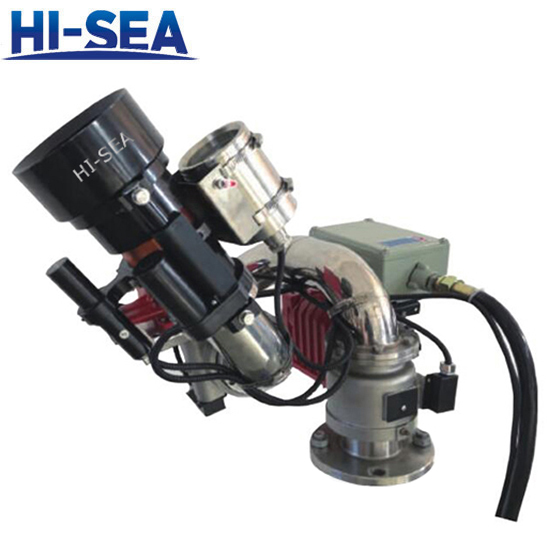

Photo of ZDMS-Ex:
