Electric Fire Water Monitor - Fire Monitor - Hi-sea

Electric Fire Water Monitor


Electric Fire Water Monitor


Description:

Electric fire water monitor has two DC (direct current) drive control modes: wired control and wireless control. The operator can directly control the angle of water jetting from a long distance, so that to protect the safety of them. When it sprays water column, it can extinguish solid fire. When it sprays water mist, it can be used for cooling fire site and rescue. The electric fire water monitor is mainly made from stainless steel.

Product Superiority:

1. Remote control

2. Corrosion resistance

3. Large flow

Product Detail:

Model
Flow range
(L/S)
Jetting range
(≥m)
Rated pressure(Mpa)
Pitching angle
(°)
Rotation angle
(°)
Weight(≤kg)
Connecting
flange
PSKD20
20 48
0.8
-30〜+70 or -70〜+70
0-360
25
DN100
PSKD30
30 55
30
PSKD40
40 60
30
PSKD50
50 65
45
PSKD60
60 70
1
45
PSKD70
70 75
45
PSKD80
80 85
45
PSKD100
100 90
1.2
55
DN150
PSKD120
120 95
55
PSKD150
150 100
1.4
105
DN200
PSKD180
180 105
105
PSKD200
200 110
105

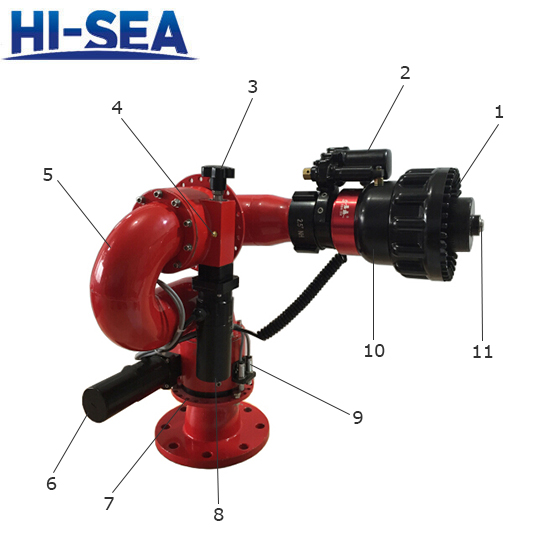

Structure of Electric Fire Water Monitor:

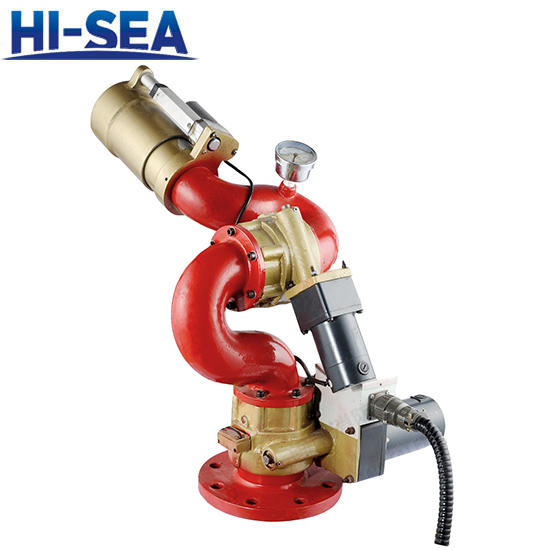

Picture 1 of Electric Fire Water Monitor:

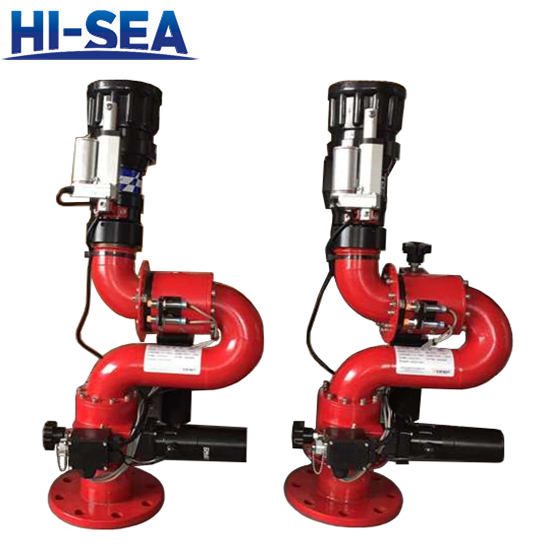

Picture 2 of Electric Fire Water Monitor:
