Fire Water Nozzle

Fire Water Nozzle

Description:

Fire water nozzle is a fire extinguishing tool. It can spray dense and substantial water flow when it is connected to fire hose. This can be used to extinguish solid material fires by water column and put out charged fires, combustible dust fires as well as some oil fires by water mist. Our company has many kinds of water and foam fire nozzles.

Product Superiority:

1. Long jetting range

2. Small recoil

3. Portable

Product detail:

Manual water nozzle:

Type: QLD5.0/4III-SX

Weight: 1.5 kg

Material (body): hard anodized aluminum

Material (handle): Horseshoe (Injection Molded Nylon red Handle)

Material (Nozzle Bumper): Rubber

Swivel Inle: 1.5" (40mm) recommended

Coupling: Storz/NH/BSP/Russian type, etc.

Length: 230mm

Valve Type: ABS ball valve, aluminum valve is available

Flow Control Method : 50-100-150-230 L/min selectable,

Flush function available to clean the nozzle to avoid something stucked

Working Pressure: 6 bar

Max Reach @ Max Flow: 20 m

Fog Pattern Method: ABS Spinning teeth, stainless steel teeth is available

Max fog angle: 120°

Automatic pressure regulation water nozzle:

Type: QLD8.0/30-IV

Weight: 4.5 kg

Material (body): hard anodized aluminum

Material (handle): Horseshoe (Injection Molded Nylon red Handle)

Material (Nozzle Bumper): Rubber

Swivel Inlet: 2" (50mm) recommended

Length: 280mm

Valve Type: Ball Valve (Aluminum)

Flow Rate: 400-2000L/min (100-500GPM)

Flow Control Method: Automatic (constant pressure, variable flow, constant gallonage, flow does not change with pattern)

Working Pressure: 7 bar

Max Reach @ Max Flow: 60 m

Fog Pattern Method: Molded Rubber Teeth (fixed)

Max fog angle: 120°

Water wall nozzle:

Type: SX-WN (water wall nozzle)

Weight: 2.39 kg

Material (body): hard anodized aluminum

Material (water wall): Stainless steel

Swivel Inlet: 2" (50mm) recommended

Coupling: Storz/NH/BSP/Russian type, etc.

Flow Control Method: 500 L/M (135GPM)

Working Pressure: 10 bar

85-foot-wide, 23-foot-high wall of water.

Feature: a protective curtain of water. The water wall nozzle delivers 135GPM to form an 85-foot-wide, 23-foot-high wall of water

Piercing water nozzle:

Type: SX-PN (Piercing Nozzle)

Weight: 3.4kg

Material (body): hard anodized aluminum

Material (handle): Horseshoe (Injection Molded Nylon red Handle)

Material (Piercing Nozzle): stainless steel

Swivel Inlet: 1.5" (40mm) recommended

Coupling: Storz/NH/BSP/Russian type, etc.

Length: 235mm

Valve Type: ABS ball valve, aluminum valve is available

Flow Control Method: 120-480 L/M (30-125GPM)

Flush function available to clean the nozzle to avoid something stucked

Working Pressure: 6 bar

Max Reach @ Max Flow: 40 m

Fog Pattern Method: ABS Spinning teeth, stainless steel teeth is available

Max fog angle: 120°

Feature: small recoil make it suitable to work uneven place, say roof, slope and lift car.etc.

Application: It usually works for mow, cotton pile, coal yard. The sharp tip can pierce into them to inject water. So the fire can be put out inside effectively.

Automatic water nozzle with foam attachment:

Type: SX-AN-FA

Weight: 3 kg

Material (body): hard anodized aluminum

Material (handle): Horseshoe (Injection Molded Nylon red Handle)

Material (Nozzle Bumper): Rubber

Material (foam attachment): Hard anodized aluminum

Swivel Inlet: 2" (50mm) recommended

Length: 250mm

Valve Type: Slide Valve (Stainless)

Flow Rate: 200-760L/min (70-200GPM)

Flow Control Method: Automatic (constant pressure, variable flow, constant gallonage, flow does not change with pattern)

Working Pressure: 7 bar

Max Reach @ Max Flow: 50 m

Fog Pattern Method: Molded Rubber Teeth (fixed)

Max fog angle: 120°

Foam attachment: Aluminum, low foam attachment

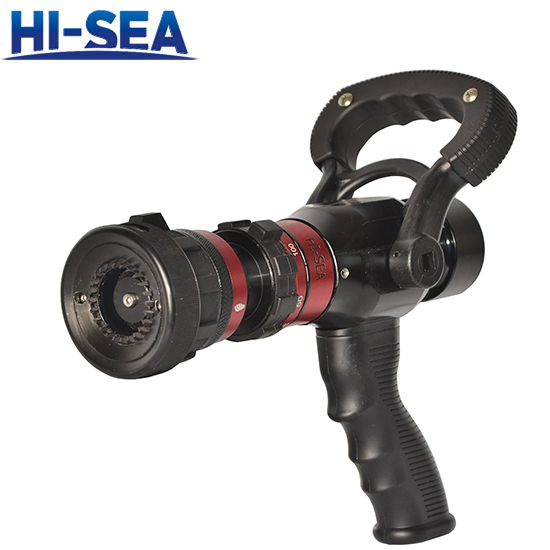

Picture of Manual Water Nozzle:

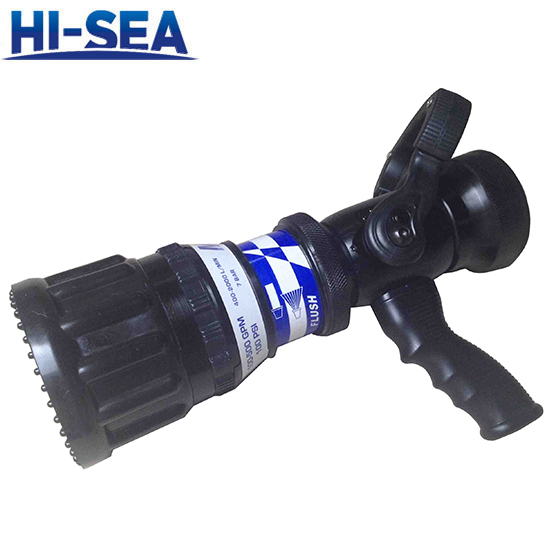

Picture of Automatic Pressure Regulation Water Nozzle:

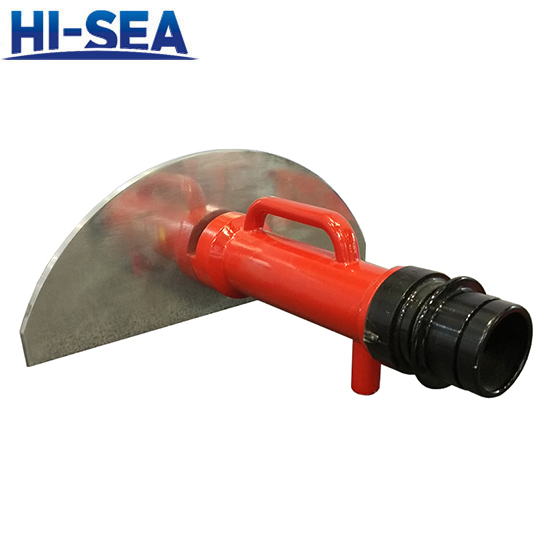

Picture of Water Wall Nozzle:

Picture of Piercing Water Nozzle:

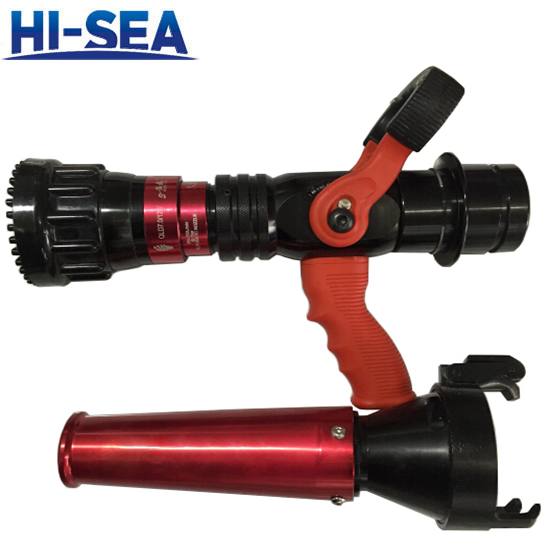

Picture of Automatic Water Nozzle with Foam Attachment:
