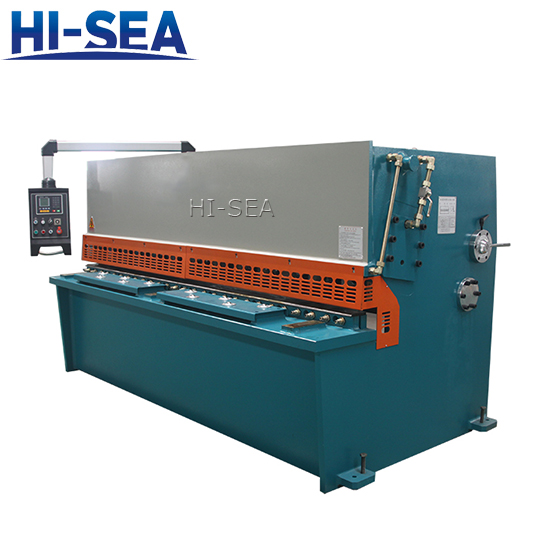

Plate Shearing Machine

Plate Shearing Machine

1. Plate Shearing Machine Features

(1) With steel sheet welded structure, hydraulic drive system, accumulator back stroke, it has characters of convenient operation, reliable performance, and beautiful appearance.
(2) Clearance between blades has display plate for swift and stepless adjustment.
(3) With light-alignment device, and be capable of stepless adjustment of stroke length of blade rack.
(4) Adopt barrier protection arrangement for personnel safety.
(5) Back gauge adopt E20 control system
(6) Ball screw, rolling guide, servo motor driving or variable frequency  control, with low noise and high precision.
(7)  Blade clearance is selectable with shear counting function and numerical control adjusting function.
2. Technical Parameters of Plate Shearing Machine

The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!

Model	May cut the thickness of slab (mm)	May cut the board to be wide (mm)	Angle of shear	Material strengh (N/mm)	Rear bumper material regulation band (mm)	Traveling schedule number of times (/min)	Main electrical machinery power (kw)	Weiht (kg)	External dimensions L*W*H (mm)
QC12Y-4*2500	4	2500	1°30'	≤450	20~500	16	5.5	5000	3040*1610*1620
QC12Y-4*3200	4	3200	1°30'	≤450	20~500	13	5.5	6000	3840*1610*1620
QC12Y-4*4000	4	4000	1°30'	≤450	20~600	10	5.5	7000	4600*1700*1700
QC12Y-4*6000	4	6000	1°30'	≤450	20~600	5	7.5	16000	6460*2100*3200
QC12Y-6*2500	6	2500	1°30'	≤450	20~500	15	7.5	6000	3040*1610*1620
QC12Y-6*3200	6	3200	1°30'	≤450	20~500	12	7.5	7000	3840*1610*1620
QC12Y-6*4000	6	4000	1°30'	≤450	20~600	9	7.5	8300	4620*1750*1700
QC12Y-6*6000	6	6000	1°30'	≤450	20~800	5	18.5	18500	6480*2100*2300
QC12Y-8*2500	8	2500	1°30'	≤450	20~500	14	7.5	7000	3040*1700*1700
QC12Y-8*3200	8	3200	1°30'	≤450	20~500	8	7.5	7500	3860*1700*1700
QC12Y-8*4000	8	4000	1°30'	≤450	20~600	8	11	8500	4640*1700*1700
…
QC12Y-40*3200	40	3200	4°	≤450	2~1000	3	90	58000	4300*3300*3000

3. Plate Shearing Machine Workshop
