Plate Rolling Machine for Special Vehicles

Plate Rolling Machine for Special Vehicles

Plate Rolling Machine for Special Vehicles

1. Plate Rolling Machine for Special Vehicles Preface

    There are such types for the plate rolling machine for special vehicles as follows:
    (1) Upper roller universal: Upper roller can not only ascend and descend vertically but also can move horizontally. The two lower rollers remain relatively fixed.
    (2) Three roller symmetrical: Upper roller can ascend and descend vertically. The two lower rollers remain relatively fixed.
    (3) With upper beam: Press roller is set at the upside of the upper roller and lower side of the upper beam, improve the stiffness strength of the upper roller which is with smaller diameter, it's good for roll the can with small fillet radius.

2. Plate Rolling Machine for Special Vehicles Technical Parameters

    The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!

Model

Max. Plate Thickness(mm)

Plate Width(mm)

Diameter of Upper Roller(mm)

Main Motor Power(kw)

W11NC-5*7000

5

7000

440

11

W11NC-6*9500

6

9500

500

15

W11NC-8*6000

8

6000

420

15

W11NC-8*7000

8

7000

450

15

W11NC-8*8000

8

8000

470

15

W11NC-8*9500

8

9500

510

15

W11NC-10*6000

10

6000

440

15

W11NC-10*9000

10

9000

470

15

W11NC-12*6000

12

6000

460

15

W11NC-12*9000

12

9000

530

22

W11NC-16*6000

16

6000

500

22

W11SNC-9*5000

9

5000

400

11

W11SNC-8*6000

8

6000

430

15

W11SNC-10*6000

10

6000

450

15

W11SNC-10*9000

10

9000

530

15

W11SNC-12*6000

12

6000

470

15

W11SNC-12*9000

12

9000

540

22

W11SNC-16*6000

16

6000

510

22

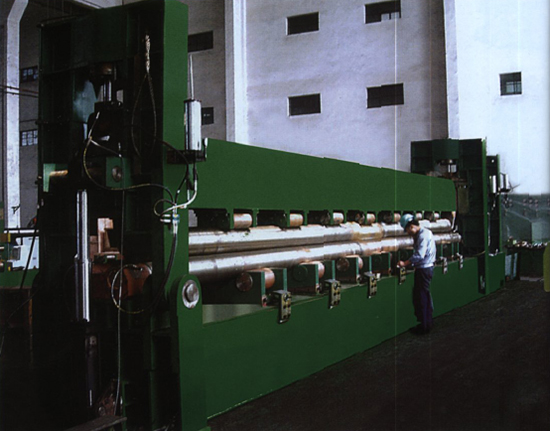

3. Workshop of Plate Rolling Machine for Special Vehicles
