SCBA with 6.8L Cylinder - Air Breathing Apparatus - Hi-sea

SCBA with 6.8L Cylinder

SCBA with 6.8L Cylinder


Description:

SCBA (Self-Contained Breathing Apparatus) with a 6.8L cylinder refers to a type of respiratory protection equipment commonly used by firefighters, industrial workers, and other professionals who may encounter hazardous atmospheres. The 6.8L cylinder typically contains compressed air or other breathable gas, which is delivered to the user through a regulator and mask or hood. The cylinder's capacity is an important factor in determining how long the user can safely operate in a hazardous environment before needing to replenish the air supply or exit the area. The specific duration of the air supply will depend on several factors, including the user's breathing rate, the workload or activity level, and the level of contamination in the environment. It is important to follow proper usage and maintenance procedures for the SCBA to ensure maximum safety and effectiveness. This air respirator is consist of cylinder, backboard, decompressor, air supply valve, full face mask, pressure gauge and residual gas alarm. It is approved by CCS&EC.


Product Superiority:

1. Light weight

2. Chemical resistance

3. Easy to wear and comfortable to use

Product Detail:

Model No.: RHZK6.8/30, RHZKF6.8/30

Cylinder material: alloy steel, carbon fiber composite

Cylinder volume: 6.8L

Working duration: 60-70min

Alert pressure: 5-6MPa

Working pressure: 300bar

Cylinder working pressure: 30MPa

Certificate: CCS, EC


Comparison with other manufacturers:

HI-SEA

Other factory

Cylinder Valve

The cylinder valve is equipped with a fast filling structure;Equipped with self-locking device, the cylinder valve will not be closed due to accidental collision and other reasons during use, increasing the safety of the respirator.

The sealing surface of the valve head of imitation cylinder valve is easily damaged, resulting in air leakage. The sealing ring is easy to crack, age and shift, resulting in leakage at the interface between the pressure reducer and the cylinder valve.

·

Pressure reducer hand wheel

Hand wheel structure is tight, precise design, good sealing. Can quickly switch on and off the bottle valve. It is durable.

Poor quality of hand wheel of imitation decompressor. When closing the bottle valve, if the hand wheel is rotated too hard, it can lead to the damage of the bottle valve pad and affect the sealing performance of the bottle valve. The hand wheel is easy to slip loose, resulting in leakage at the interface between the pressure reducer and the cylinder valve.

Full face mask

The view screen is optically corrected and coated with anti-fog and anti-scratch.

Erect body with large vision.

Medical grade silica gel fits the face and has good sealing.

The high temperature resistance of the surface screen is 850 degrees, with anti-impact, anti-fog and other functions.

Mask design is not reasonable, difficult to fit closely with the face, resulting in air leakage phenomenon.

Photo of Air Breathing Apparatus:


Photo of Back Frame:

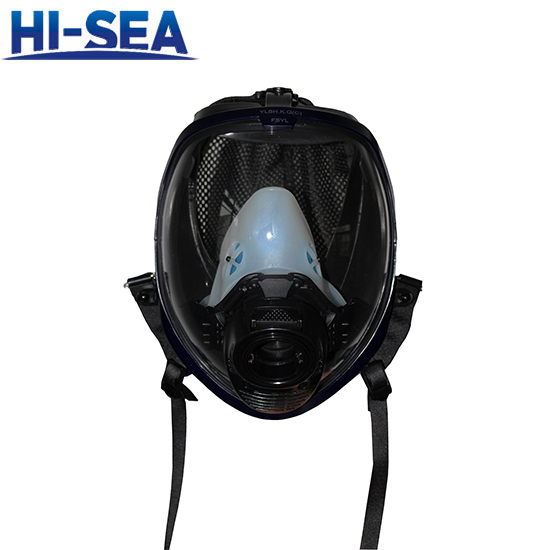

Photo of Full Face Mask:
