Motor Driven Mooring Steel Wire Reel CB 3048-83

[Search Related Products]

Motor Driven Mooring Steel Wire Reel CB*3048-83

Motor Driven Mooring Steel Wire Reel CB*3048-83

Application: CB*3048-83 motor driven tight wire reel is suitable for all kinds of ships to store steel wire ropes. But it cannot be used for towing or stranded cable. This type mooring wire reel is controlled by a motor which uses operating handle to operate through the worm gear reducer. This standard wire reel has three types: Type A,Type AS ,Type B. Type AS has double reel. Different type is suitable for different sizes of steel wire. Please refer to the basic parameters on the following data sheets.We supply various marine equipment. If you’re interested in our products, please feel free to contact us.

Features of CB*3048-83 Motor Driven Steel Wire Reel

1. Model: A26,A32,AS 26, AS 32, B39,B48

2. Max. Diameter of Steel Wire: 26~48.5mm;

3. Steel Length: 210mm,220mm;

4. Material: Steel;

5. No Pit, Burr, Crack or Any Other Defects;

6. Lubricated, Polished;

7. Certificate: ABS, CCS, BV, DNV·GL, NK etc.

8. Can Meet Customer’s Special Requirements;

Drawing of Motor Driven Mooring Steel Wire Reel CB*3048-83:

Motor Driven Mooring Steel Wire Reel CB*3048-83

Type

Model

Max. Diameter of Steel Wire

Length of Steel Wire (m)

Motor

Speed


Max. External Size(mm)

Weight(kg)

Model

Power(kw)







A

A26

26

220

JZ2-H-23-4/12

4.3/1/7

1350/410

44

56

17

1330×1360×1175

545

A32

32

210

60

18

1430×1450×1330

575

A26

26

220

56

17

2345×1360×1175

773

A32

32

210

60

18

2525×1450×1330

820

B

B39

39

210

64

19

1800×1360×1075

700

B48

48.5

210

73

22

2060×1410×1270

824

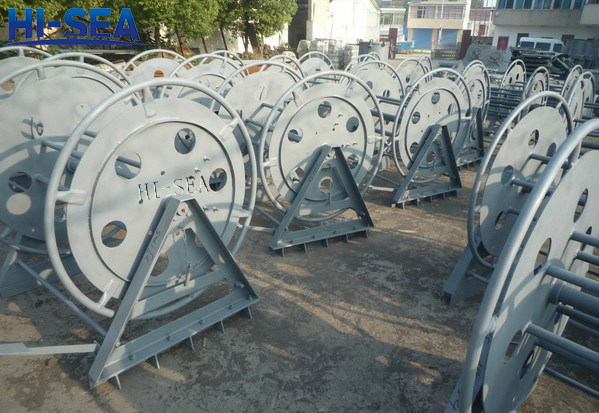

Marine mooring reel in factory:

Mooring reel
