Marine Thruster

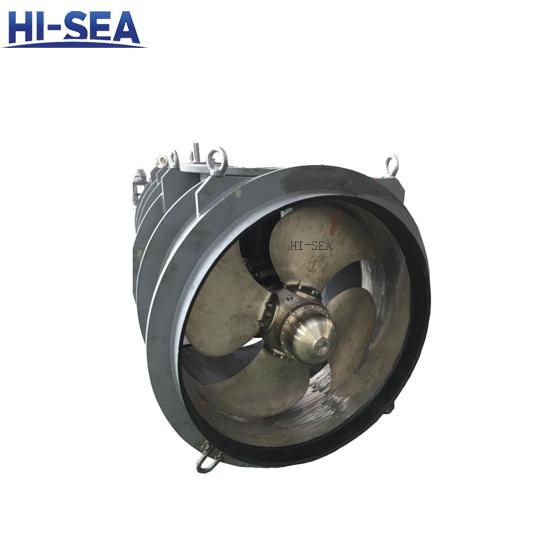

marine thrusterMarine Thruster



Application

A marine thruster is a type of propulsion system used in ships and boats to provide additional maneuverability and control. It can be located in different positions on the vessel, such as on the bow or stern, or on the sides of the hull. Marine thrusters work by generating a sideways force that can be used to turn the ship, either by creating a flow of water perpendicular to the vessel's direction of travel, or by rotating a propeller in a direction that generates a side force. The amount of force generated by the thruster depends on its size and power, as well as the speed and direction of the water flow.
Different types of marine thrusters include tunnel thrusters, azimuth thrusters, pod thrusters, and waterjet thrusters. Each type has its own advantages and disadvantages, depending on the vessel's size, intended use, and operating environment. The benefits of marine thrusters include increased maneuverability and control, improved safety, and reduced risk of damage to the vessel and surrounding infrastructure. They are especially useful in situations where precise movements are required, such as when navigating through narrow channels, docking, or mooring. Overall, marine thrusters are important components of many modern ships and boats, and they play a crucial role in ensuring safe and efficient operation in a variety of challenging environments.

Features

1.Propeller type:CPP

2.Max Thrust.:38-504KN

3.Input Power:280-1500 Kw

4.Propeller Dia.:1100 -3300 mm

5.We can design and manufacture the product according to client's drawing.

Technique Data

Propeller Dia. Input power max. Frequency Input rpm Zero pitch  torque*** max
rotating inertia weight
Φ.mm KW HZ rpm NM Kgm2 tunnel device Motor&starter
1100 320 50 1450 160 1.2 1300 850
380 60 1750 220
1300 445 50 1450 340 1.9 2500 1300
480 60 1750 470
1650 590 50 1450 340 4.5 3700 2300
800 60 1750 500
2000 880 50 1450 840 11.3 6250 3300
1200 60 1190 570
2400 1580 50 980 2270 28.8 12500 4500
1720 60 1190 3050
2800 2240 50 980 3935 65 20500 5000
2010 60 880 3300
2300 3500 50 590 5600 358 31000 6000
3500 60 590 5600
