Application

Bow thruster provide thrust to the vessel to move sideways. Bow thruster are divided into: controllable pitch bow thruster(CP), fixed pitch bow thruster(FP), contra-rotating propeller bow thruster, single propeller bow thruster and retractable bowthruster. The contra-rotating propeller bow thruster realizes the smaller propeller diameter of the same power products, the larger thrust of the same diameter design of bow thruster. At the same time, the left and right thrust are basically coincident.

According to the source of power, there are three types: variable-frequency driven, hydraulic driven and diesel engine driven. According to the drive types, there are L-drive bow thruster and Z-drive bow thruster.

From the design stage to dispatch, our internal quality assurance systems fully comply with marine class standard. In addition, third- party surveyors will check the process of  design and fabricating to ensure the marine winch complies with all relevant specifications.
For more marine bow thruster, please click here.

Features

1. Maximizing efficiency and minimizing noise generation.

2. Installed transversely in the bow of a vessel.

3. Simplify the operation of the vessel.

4. Increase the operation flexibility of the vessel.

5. Easy for installation, operation and maintenance.

6. All products are designed and manufactured according to client's drawing or sample.

7. Certificate: BV, CCS, GL, ABS, LR, RINA, DNV, RMRS...

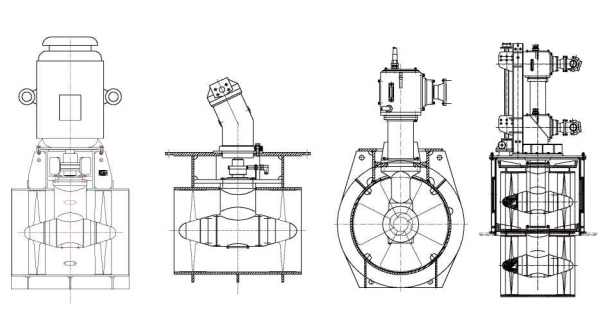

Drawing of Marine Bow Thruster System

Technical Parameters

Controllable Pitch Bow Thruster Technical Data List

Type	Propeller dIa.	Max.input power	Input speed	Max.input torque	Thrust force
	mm	kw	rpm	Nm	KN
110-CP	1050-1150	315	1470	2050	～50
145-CP	1400-1500	625	1760	3575	～95
180-CP	1750-1850	850	1176	6905	～134
220-CP	2150-2250	1800	1176	14620	～280
280-CP	2700-2900	2400	882	23820	～352

Fixed Pitch Bow Thruster Technical Data

Type	Propeller dIa.	Max.input power	Input speed	Max.input torque	Thrust force
	mm	kw	rpm	Nm	KN
40-CP	350-450	37	1470	245	～5.5
50-CP	450-550	75	1760	430	～12.0
80-CP	750-850	180/200	1470/1760	1170	～26/27
110-CP	1050/1150	315/350	1470/1760	2050	～50/53
130-CP	1250-1350	450/500	1470/1760	2950	～68/75
180-CP	1750-1900	1000/850	1470/1176	6500/6905	～152/134
250-CP	2300-2600	2300/2050	980/882	22415/22193	～345/310
320-CP	3000-3400	3200	735	41575	～480

Contra-rotating Propeller Bow Thruster Parameter List

Type	Max. input power (kW)	Rated input speed (rpm)	Propeller diameter (mm)	Tunnel inner diameter 0D1(mm)	Tunnel wall thickness t (mm)	Tunnel Min. length L (mm)	Max. thrust (kN)
RFCT45	65	1470	450	470	12	750	10.4
RFC750	110	1470	500	520	12	850	17.6
RFCT60	132	1470	600	620	12	1000	21.1
RFCT70	200	1470	700	725	15	1100	32
RFCT80	280	1470	800	825	15	1200	44.8
RFCT90	355	1470	900	925	20	1300	56.8
RFCT100	400	1470	1000	1030	20	1450	64
RFCT115	500	1470	1150	1180	20	1600	80
RFCT130	600	1470	1300	1330	20	1750	96
RFCT145	750	970	1450	1485	25	1950	119
RFCT-165	1000	970	1650	1685	25	2200	158
RFCT180	1200	970	1800	1840	25	2450	190
RFCT200	1500	970	2000	2040	30	2700	237
RFCT220	1750	970	2200	2240	30	3000	276

Transmission types of Marine Bow Thruster

Image of Marine Bow Thruster
