Marine Quick Release Disc Towing Hook

Marine Quick Release Disc Towing Hook

Marine Quick Release Disc Towing Hook

Application: Marine towing hooks are various in types and sizes. Disc towing hook is one common type of towing hooks and widely applicable to ship mooring and towing. Comparing to the traditional marine bollards, quick release towing hook not only reduces the labor intensity but also improve the labor efficiency, the safety and the reliability. We supply both manual release and pneumatic release towing hooks. For more details, please do not hesitate to contact us. We’re sincere to establish cooperation relationship with you.

Specification:

1. Type: Disc Type

2. Control System: Manual Control or Remote Control

3. Safe Working Load: 15ton to 100ton

4. Material:Steel

5. Movement: Side Movement

6. Usage: Mooring and Towing

7. Application: Harbor, Dock, Vessel, Ship

8. Color: Yellow, Red, Black as required

9. Durable, Long Lifetime

10. High Quality with Competitive Price

11.Certificate: ABS, CCS, BV, DNV·LR, NK etc.

12. Customized Sizes or Types.

Drawing of Marine Quick Release Disc Towing Hook:

Marine Quick Release Disc Towing Hook.jpg

SWL (t)

H (mm)

L (mm)

B (mm)

Ф (mm)

R (mm)

15

310

1050

110

75

50

20

360

1190

130

85

60

30

390

1215

140

90

60

40

430

1460

150

100

65

50

560

1660

180

130

75

60

570

1700

190

130

80

80

590

1800

200

140

80

100

620

1920

220

150

88

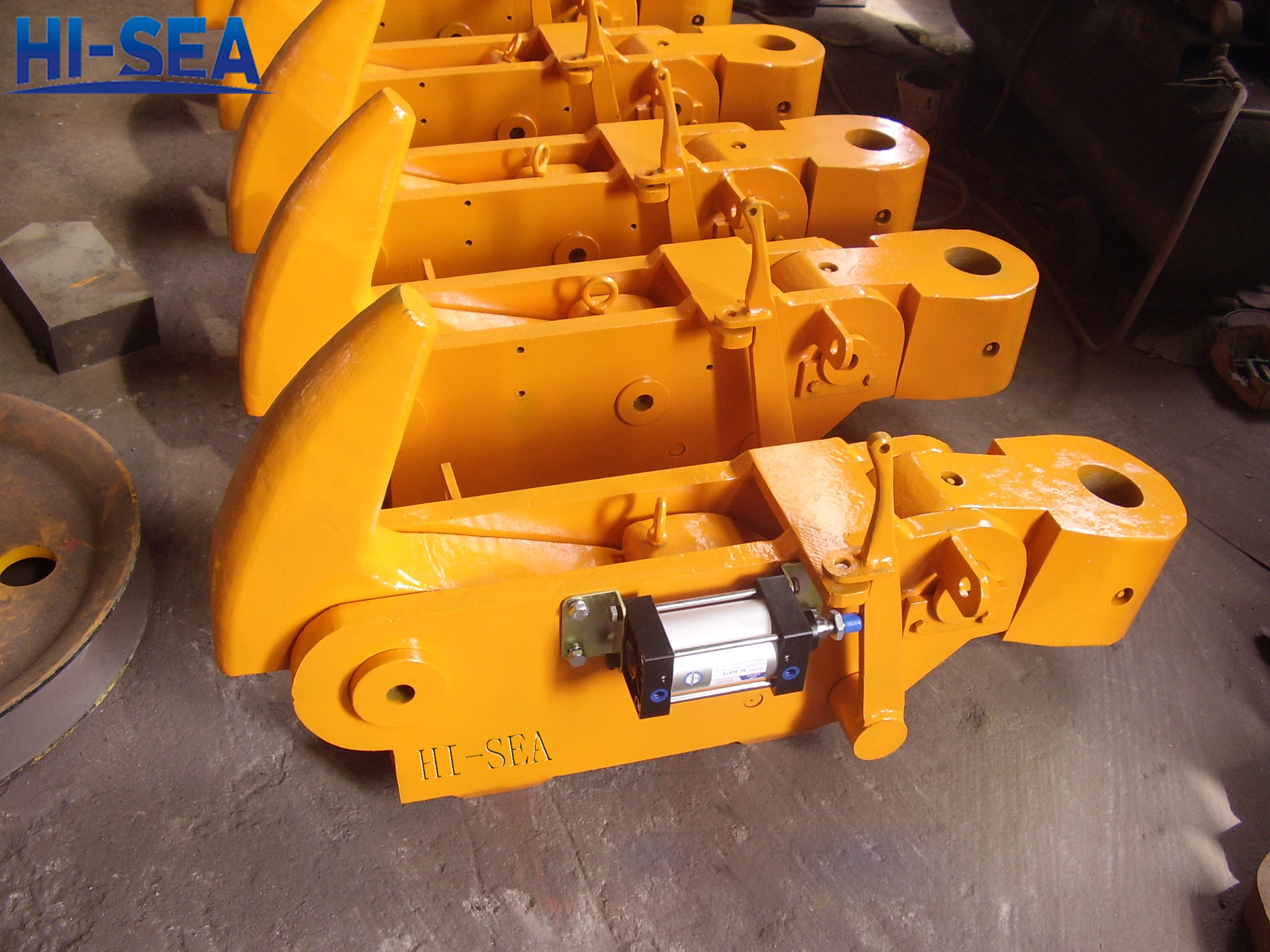

Marine towing hook in factory:

IACS Certificates:
