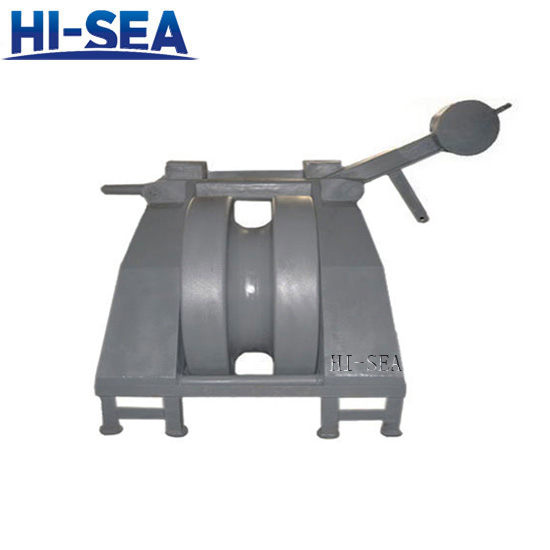

JIS F2032 Cast Steel Chain Stopper

JIS F2032 Cast Steel Chain Stopper

JIS F2032 Cast Steel Chain Stopper

Application:

   JIS F2032 cast steel chain stopper is roller pawl type chain cable stopper. It is positioned on the deck between the anchor windlass and hawsepipe, used for clamping the chain. When the ship is mooring or at anchor, the chain stopper can help transfer the chain tension to the ship instead to the windlass. Thus the windlass can be not in the state of stress. Chain stopper is a necessary mooring equipment for vessels.

    For more informations, please feel free to contact us.

Features of JIS F2032 Cast Steel Chain Stopper:

1. Roller Pawl Type Chain Stopper;

2. Standard: JIS F2032;

3. Applicable to Grade 3 Anchor Chain;

4. Nominal Chain Diameter 70mm to 132mm;

5. Material: Cast Steel;

6. Durable, Long Life Time;

7. Competitive Price, Short Delivery, Excellent Service;

8. Certificate: CCS, ABS, BV, LR, NK and etc.;

9. Can be customized.

Drawing and Parameters of JIS F2032 Cast Steel Chain Stopper:

Dimensions(mm)

Nominal Chain

Dia.

(mm)

h

h1

h2

L

L1

L4

B

b

D

Weight

(kg)

70-73

125

422

860

660

640

241

980

115

584

1096

76-78

133

450

918

700

680

254

1046

123

624

1316

81-84

143

483

983

760

720

279

1110

134

672

1608

87-90

153

515

1055

810

770

295

1190

143

720

1938

92-95

162

545

1115

860

810

317

1250

151

760

2286

97-102

175

584

1195

920

860

337

1320

161

816

2787

105-107

185

617

1265

981

900

364

1390

170

864

3274

111-114

195

651

1335

1026

940

376

1460

180

912

3874

117-122

208

695

1427

1100

995

408

1550

191

976

4600

127-132

225

750

1542

1190

1060

441

1660

207

1056

5750

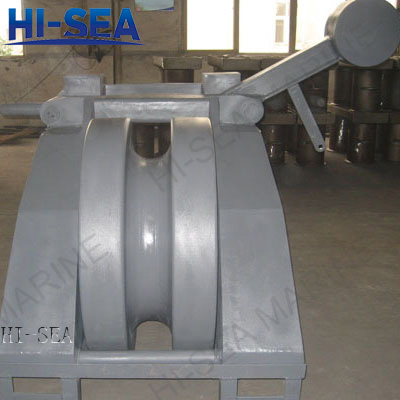

Mooring chain stopper in factory:

Cast Steel Chain Stopper
