1. Hot Water Heater Breif Description

    The hot water heater, which use the waste hot water from boiler or mian engine to heat the fresh water for the people on the veesel, drinking or washing.
    The heating source is come from boiler or main engine.
2. Hot Water Heater Technical Parameters

Model

ZRG-

0.12

0.2

0.3

0.5

1.0

Capacity (m3)

0.12

0.2

0.3

0.5

1.0

Working pressure(MPa)

0.6(60℃)

Design pressure (MPa)

0.7

Test pressure (MPa)

1.05

Safety valve open pressure(MPa)

0.63

Water inlet temperature(℃)

15

Water outlet temperature (℃)

65

Working temperature (℃)

0~65

Design temperature(℃)

80

Steam pressure (MPa)

0.3

Heating water capacity(kg/h)

275

450

750

1200

3250

steam consumption(kg/h)

27.5

45

75

120

325

The thickness of the external thermal layer(mm)

40

The thickness of outer galvanized sheet steel(mm)

0.7

3. Hot Water Heater Main Parts

No.

Name

Qty. (pcs)

1

Body

1

2

Thermometer

1

3

Manhole cover

1

4

Temperte. contrl. valve interface

1

5

Manometer

1

6

Safety valve

1

7

Electric control box

1

8

Liquidometer

1

9

Temperte. cntrl. interface

1

10

heater

1

11

Hot Water heater

1

12

Stop inverted valve

1

13

Flanged joints of the transition

1

14

top valve

1

15

Marine vortex of centrifugal pumps

1

16

Public base

1

17

Pressure Controller

1

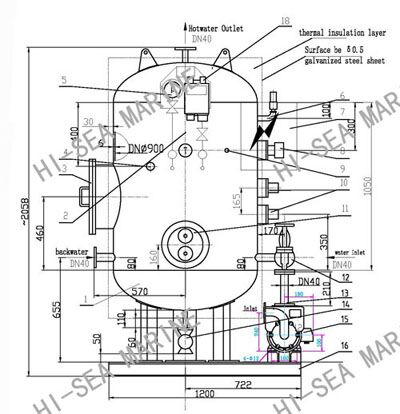

4. Hot Water Heater General Drawing

5. All kinds class certificate of Hot Water Heater can be supply.
