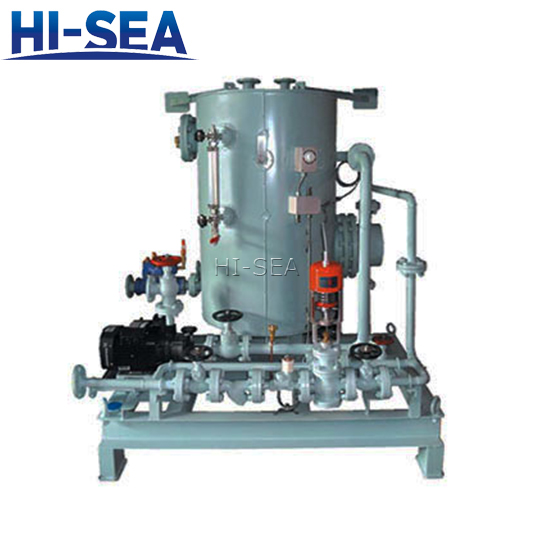

DRG-2.0 Marine Calorifier

DRG-2.0 Marine Calorifier

DRG-2.0 Marine Calorifier

1. DRG-2.0 Marine Calorifier Operational Principle
(1) The marine calorifier water inlet meets the pressure water tank, (approximately 15℃) fills the calorifier system's in fresh water heats up the cabinet, calorifier system heater fresh water heating to 65℃, for the entire ship.
(2) The water used system backwater pipe joint hot water tank water pump water inlet, the water pump regularly the water pump regeneration water tank which cools gradually the water used system, carries on the heating.
2. DRG-2.0 Marine Calorifier Technical Specification
(1) Main parameter
     Volume: 1.0m³ ;
     Design pressure: 0.7MPa;
     Working pressure: 0.5MPa;
     Electric heating power: 2*12+2*18kw;
     Power source: 3φ 480V 60Hz (optional).
(2) Main body structural testing: 1.05MPa;
     Whole pressure testing: 0.875MPa without leakage.
(3) The superficial stain removal, the ontology of galvanized processing.
(4) With ANSI B 16.5 RF#150 flange.
3. DRG-2.0 Marine Calorifier Accessories List

Item No.

Model No.

Description

Qty.

1

DN20

ball valve

1

2

DN400

Manhole cover

1

3

δ8

Main body

1

4

WSS-401

Thermometer

1

5

Pressure gauge connection

1

6

YC-100T

Pressure gauge

1

7

Name plate

1

8

A21F-16P

Safety valve

1

9

Electrically controlled box

1

10

Temperature controller connection

1

11

UQK-01

Fluid position controller

1

12

RYF 480V/18Kw

Electric heater

2

13

RYF 480V/12Kw

Electric heater

2

14

B16040  GBT 591

Stop inverted valve

2

15

1.5CWX-2

Circulating pump

2

4. All kinds class certificate of DRG-2.0 Marine Calorifier can be supply.
