ZRG Series Steam Heating Hot Water Tank

ZRG Series Steam Heating Hot Water Tank

Application

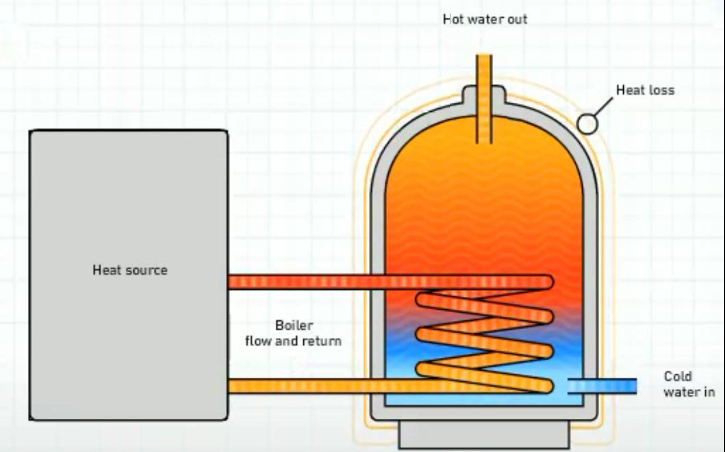

This series of hot water tank is suitable for freshwater system which is heated by steam.

ZRG Series Steam Heating Hot Water Tank
0.12 m³ Steam Heating Calorifier	0.2 m³ Steam Heating Hot Water Tank	0.3 m³ Steam Heating Calorifier
0.5 m³ Steam Heating Water Tank		1 m³ Steam Heating Calorifier

Main Spare Parts

Temperature adjusting valve: open and close it according to the set temperature control range.

Pressure gauge: to show the pressure in tank.

Thermometer: to show the water temperature in tank.

Safety valve: If the pressure in tank is more than 0.63MPa, the safety valve will open to release the pressure in tank.

Technical Parameters

No.	Name	Material
1	Support	Q235-A
2	Body	SS304
3	Steam heater	Assembly
4	Temperature control valve	Assembly
5	Temperature gauge	Assembly
6	Pressure gauge(water)	Assembly
7	Pressure gauge(steam)	Assembly
8	Name plate	SS304
9	Safety valve	Assembly
10	Thermometer sensor	Assembly
11	Liquid level controller	Assembly

Model	ZRG-
	0.12	0.2	0.3	0.5	1.0
Capacity （m3）	0.12	0.2	0.3	0.5	1.0
Working pressure（MPa）	0.6（60℃）
Design pressure （MPa）	0.7
Test pressure （MPa）	1.05
Safety valve open pressure（MPa）	0.63
Water inlet temperature（℃）	15
Water outlet temperature （℃）	65
Working temperature （℃）	0~65
Design temperature（℃）	80
Steam pressure （MPa）	0.3
Heating water capacity（kg/h）	275	450	750	1200	3250
steam consumption（kg/h）	27.5	45	75	120	325
The thickness of the external thermal layer（mm）	40
The thickness of outer galvanized sheet steel（mm）	0.7

ZRG Series Steam Heating Hot Water Tank Operation method
(1) Adjust the temperature control range
Set the low temperature and high temperature of temperature regulating valve to 50℃ and 65℃ separately.
(2) Set the open pressure of safety valve
Set the open pressure of safety valve. When the pressure in tank is over 0.63MPa, the safety valve will take off to release the pressure in tank.
(3) Normal operation
Open the water inlet and outlet valve. Start the temperature regulating valve. When the temperature in tank is lower than 50℃, it will open automatically until the temperature reaching 65℃.

All kinds class certificate of ZRG Series Steam Heating Hot Water Tank can be supply.
