G Single Screw Mud Pump

G Single Screw  Mud Pump

Overview of G Series Single Screw Pump

G Single Screw  Mud Pump is named by its application, which is G Single Screw Pump. It is a kind of internal meshing hermetic screw pump, belonging to the rotor oil pump. Its greatest feature is the medium of strong adaptability, smooth flow, pressure pulsation is small, self-priming capability, and any other type of pump should not be compared. Single screw pump the main working parts are eccentric screw (Rotor) and fixed bushing (Stator). The two part special geometry, forming a plurality of independent sealing cavities, medium by the axis advance even flow, volume remains constant, so can not generate eddy current stable pressure and stirring. The selection of special made of elastic material, the pump to transport of high viscosity fluid, and a conveying containing hard suspended medium, containing short fiber medium fluid performance, is the general pump can not be replaced.

Model Explanation G42-1Ⅱ

G— Single screw pump
40— The rotor nominal diameter 40mm
1— Pump Series (per level of water pump discharge pressure 0.6MPa)
Ⅱ— Improved type

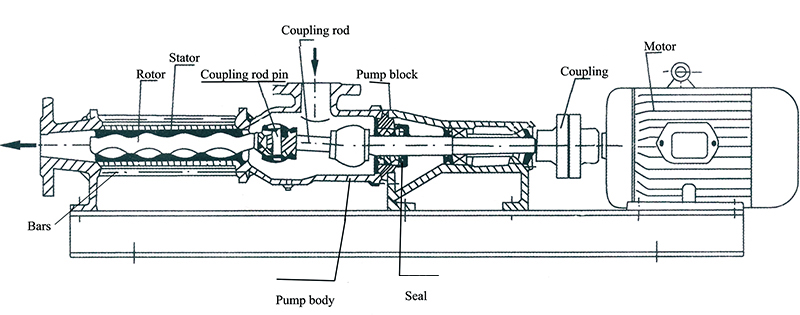

Structural Specification

Performance Parameter

Type

Pressure in the delivery branch 0.3MPa

Pressure in the delivery branch 0.6MPa

Speed
rpm

Capacity
m3/h

Shaft Power
kW

Motor/Gear Reducing


Speed
rpm

Capacity
m3/h

Shaft Power
kW

Motor/Gear Reducing

G(GS)20-1

970

1.28

0.58

Y100L-6(1.5kW)

970

1.06

0.73

Y100L-6(1.5kW)

720

0.81

0.45

Y132S-8(2.2kW)

720

0.58

0.56

Y132S-8(2.2kW)

579

0.50

0.33

YCJ71(1.1kW)

579

0.27

0.41

YCJ71(1.1kW)

513

1.41

0.29

513

0.22

0.36

452

0.33

0.26

452

0.15

0.32

393

0.22

0.23

393

0.10

0.28

G(GS)25-1

720

2.45

0.47

Y132S-8(2.2kW)

720

2.2

0.69

Y132S-8(2.2kW)

570

1.89

0.39

YCJ71(0.75kW)

579

1.6

0.54

YCJ71(1.1kW)

506

1.63

0.35

513

1.4

0.50

445

1.45

0.31

452

1.14

0.45

388

1.18

0.28

393

0.9

0.39

334

1.0

0.25

339

0.7

0.34

284

0.76

0.22

288

0.53

0.31

G(GS)35-1

579

3.9

0.70

YCJ71(1.1kW)

579

3.25

1.06

YCJ71(1.5kW)

513

3.4

0.61

513

2.8

0.95

452

3.0

0.54

452

2.3

0.83

393

2.5

0.46

393

1.9

0.73

339

2.0

0.42

339

1.5

0.63

288

1.6

0.36

288

1.15

0.54

217

1.1

0.29

G(GS)40-1

579

7.9

1.06

YCJ71(1.5kW)

587

6.8

1.8

YCJ71(2.2kW)

513

6.9

0.93

520

5.7

1.61

452

5.9

0.82

458

4.8

1.43

393

5.1

0.74

399

4

1.21

339

4.2

0.63

344

3

1.05

288

3.3

0.53

292

2.2

0.9

240

2.65

0.47

244

1.6

0.75

186

1.7

0.36

YCJ132(1.1kW)

G(GS)50-1

587

15.7

2.42

YCJ71(3kW)

571

13.4

3.61

YCJ80(4kW)

520

13.8

1.95

504

11.5

3.2

458

12.1

1.64

442

9.5

2.75

399

10.2

1.45

383

7.5

2.4

344

8.8

1.16

327

6

2.02

292

7.1

0.96

275

4.4

1.71

244

5.6

0.85

YCJ71(2.2kW)

223

2.8

1.46

YCJ80(3kW)

171

3.5

0.60

YCJ132(2.2kW)

G70-1

571

31

4.3

YCJ80(5.5kW)

545

25

7.04

YCJ100(11kW)

504

27

3.43

479

21

6.11

442

24

2.99

417

17.9

5.47

383

20

2.53

360

13.5

4.7

327

16.5

2.22

305

9.5

3.99

244

12

1.63

YCJ100(4kW)

250

7.0

2.88

YCJ100(7.5kW)

208

8.8

1.5

YCJ160(4kW)

194

3.8

2.47

YCJ80(7.5kW)

149

5.2

0.95

G85-1

346

35

5.8

R802(11kW)

346

27

8.8

R802(15kW)

284

28

5.5

284

20

8

248

23

5.0

248

16

7.2

212

20

4.8

R702(7.5kW)

210

13

6.5

R902(11kW)

184

16

4.4

R702(5.5kW)

186

9

5.7

162

14

3.9

R802(5.5kW)

162

8

5

R702(7.5kW)

G105-1

346

66

10

R802(15kW)

306

55

13

R902(18.5kW)

284

54

8

284

44

11

R802(15kW)

248

44

7

R902(11kW)

248

34

9.5

210

35

6

210

28

8.4

R902(15kW)

186

29

5

196

22

7

162

23

4.4

R702(7.5kW)

156

16

6

R902(11kW)

G135-1

321

128

20

R142(37kW)

325

120

35

R142(55kW)

306

122

19

R92(30kW)

282

95

30

R142(55kW)

253

95

16

R92(22kW)

245

80

26

R132(37kW)

212

80

14

R92(18.5kW)

212

64

23

R92(30kW)

187

68

12

187

55

20

156

50

10

R902(15kW)

157

40

16

R92(22kW)

G(GS)20-2

970

1.45

0.9

Y100L-6(1.5kW)

970

1.35

1.07

Y100L-6(1.5kW)

720

1.0

0.7

Y132S-8(2.2kW)

720

0.92

0.83

Y132S-8(2.2kW)

579

0.75

0.65

YCJ71(1.1kW)

579

0.68

0.76

YCJ71(1.1kW)

513

0.62

0.6

513

0.54

0.70

452

0.52

0.55

452

0.40

0.65

393

0.35

0.47

393

0.28

0.52

G(GS)25-2

720

2.41

1.14

Y132S-8(2.2kW)

720

2.2

1.43

Y132S-8(2.2kW)

579

1.86

0.96

YCJ71(1.5kW)

579

1.65

1.18

YCJ71(1.5kW)

513

1.62

0.85

513

1.4

1.05

452

1.44

0.75

452

1.14

0.96

393

1.15

0.69

393

0.9

0.86

339

0.99

0.61

339

0.7

0.70

288

0.81

0.53

288

0.53

0.66

The Picture of G Single Screw  Mud Pump
