CHJP86 EMC Armored Marine Instrumentation and Communication Cable

CHJP86 EMC Armored Marine Instrumentation and Communication Cable

Applications:

This product is used in ships,petrol platforms and offshore buildings for power,light and control systems,usually used for fixed installation in most areas and open deck in ships.Design to meet requirements for improved EMC screening properties.If the cable is exposed to direct sun light protective covering or cable with black outer sheath is recommended.

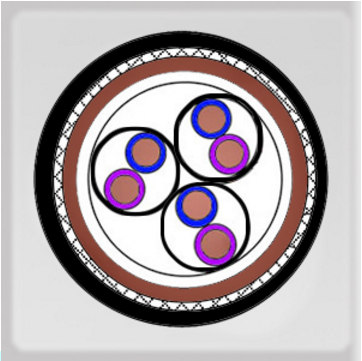

Constructions:

1.Conductor

-Stranded copper wire

2.Insulation

-XLPE

3.Twisted pair

- two insulated cores twisted together to form a pair

- plastic coated aluminium tape and a tinned copper drain wire

4. Bedding - filler tape

5. Screen

- drain wire copper (in all sizes)

- copper tape 100% 6. Armour

- copper wire braid, coverage >94% EC 60092-350

- tinned copper wire braid on request

7. Sheath

- polyolefine plastic, SHF1 EC 60092-359

- on request, thermosetting polyolefine, SHF2

- standard colour grey, other colours on request

Applied Standards:

Design IEC 60092-353
Conductor IEC 60228 Class 2
Insulation IEC 60092-351
Sheath IEC 60092-359
Flame-retardant IEC 60332-1-2 -test for single insulated wire and cable IEC 60332-3-22 -test for bunched wires and cables, category A
Halogen-free IEC 60754 series
Smoke emission IEC 61034 series
Transfer Impedance IEC 61196-1 (typical value 26dB over 1mΩ/m at 100MHz [20mΩ/m])

Electrical data:

aLoop resistance of pair, max. / +20°C Pair capacitance, nom. / 800Hz Loop inductance, nom. Insulation resistance / +20°C

Service Conditions:

1.Rated Voltage:150/250V(300V)

2.long time working temperature 90℃

3.Minimum recommended installation temperature -15 °C Lowest operation temperature -40 °C

4.flexible cables for mobile devices,the other cables are fixed laying cable bending radius while laying is as below

Cable Structure Cable Outer Diameter Minimum Bending Radius
Metal Braided Armored
6D
Non Armored D≤25 4D
D>25 6D
