A Type Sounding Pipe Head

A Type Sounding Pipe Head

A Type Sounding Pipe Head

1. Application

A Type Sounding Pipe Head is suitable for sounding device of oil tank and water tank for all kinds of ships and offshore drilling platforms. There are type A, type B and Type C. Type A is the inject head for steel deck, Type B is the inject head for wood deck, Type C is the lift inject head.

2. Material
 - Body: Cast Steel
 - Cover: Brass
 - Gasket: NBR
 - Welded Plate: WCB
3. Features
 - medium: water
 - nominal diameter: DN40~DN150
 - standard: CB/T3778-1999

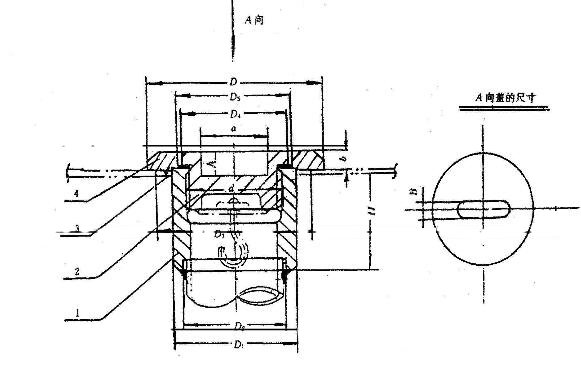

4. Specification

DN

H

D1

D2

D5

D3

D4

a

B

h

d

D

D6

b

Weight(kgs)

40

60

73

50

59

65

57

34

6

10

M45*3

80

50

6

0.90

50

65

92

62

78

75

76

34

6

10

M60*3

92

62

6

1.10

65

70

108

82

94

90

92

34

6

10

M76*3

112

82

6

1.62

80

75

122

93

108

105

106

55

10

14

M90*3

123

93

10

2.41

100

80

142

118

128

130

126

55

10

14

M115*3

148

118

10

4.02

150

100

198

172

180

185

178

55

10

14

M165*3

202

172

10

9.18
