12.5KN Electric Combined Windlass Winch

Application

12.5KN Electric Combined Windlass Winch is driven by electric motor. It is a combination of anchor windlass and mooring winch. It is an ideal choice to perform both anchoring and mooring functions in various types of vessels. And it is equipped with manual brake and manual clutch. 12.5KN electric combined windlass winch is an essential piece of equipment for any boat or ship that needs to anchor regularly. It is powerful, reliable, and easy to operate, making it an ideal choice for many different types of vessels.

Material

Aluminum, stainless steel and carbon steel.

Advantages and Features

1. Compact structure, high strength;

2. Remote control or local control;

3. Low noise, high security;

4. Working steadily and smoothly;

5. Easy for installation, lubrication and maintenance;

6. Corrosion resistance, long lifespan;

7. With single gypsy wheel;

8. Manual brake and clutch;

9. With single warping head;

10. Can be customized according to your requirements;

11. Certificate: BV, LR, IRS...

Drawing of 12.5KN Electric Combined Windlass Winch

Main specifications

Chain diameter	Rated pull	Overload pull	Nominal speed	Drum pull	Speed	Wire diameter	Drum capacity
mm	KN	KN	m/min	KN	m/min	mm	≥m
12.5	7.4	11.1	16	5	16	10	100

Testing Picture of 12.5KN Electric Combined Windlass Winch

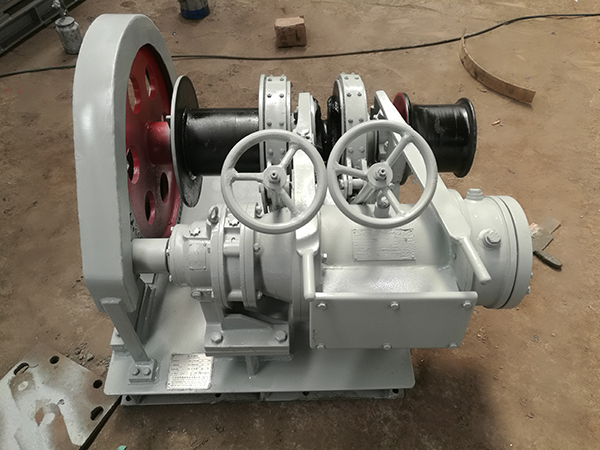

Finished Image of 12.5KN Electric Combined Windlass Winch

Delivery of 12.5KN Electric Combined Windlass Winch
