0.1m³ Plate Type Heat Exchanger

0.1㎡ Plate Type Heat Exchanger

Basic Information

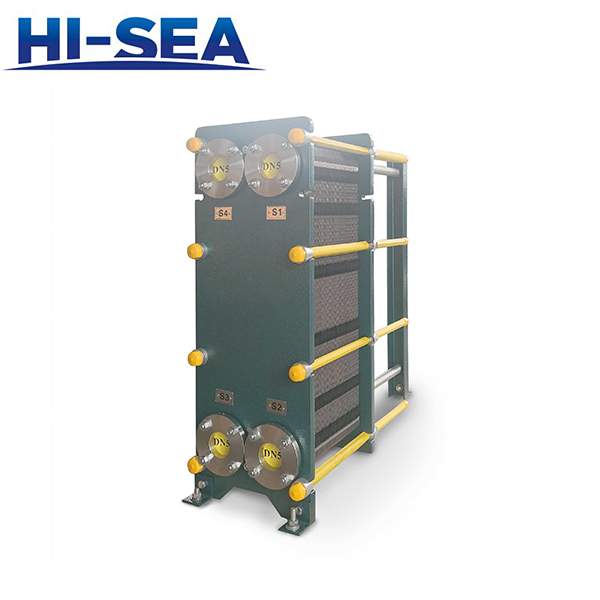

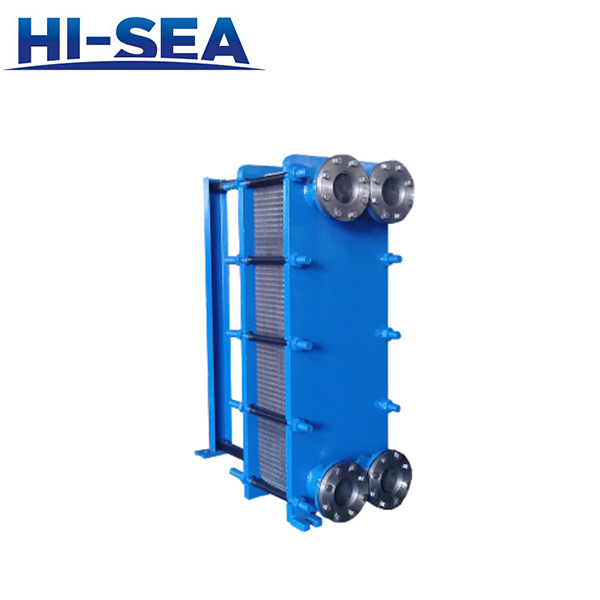

The BR0.1 plate heat exchanger is mainly composed of stainless steel pressed heat transfer plates, sealant pads, clamping bolts, pressed plate frames and other components. Resistant to various corrosive media. The heat transfer efficiency is high, and the hot and cold media flow through the adjacent plates through their channels. Due to the presence of herringbone waves on the plate, the flow of the medium forms turbulence, thereby obtaining a higher heat exchange efficiency.

The BR0.1 plate heat exchanger is highly efficient and energy-saving, and has a high heat transfer coefficient. Its heat transfer coefficient can reach 3000-4500kcal/m2. Flexible combination, convenient adjustment and maintenance. Loosen the compression nut for cleaning and maintenance, and replace the rubber pad or plate. The plates of the plate heat exchanger are all independent parts.

Technical Specifications

Monolithic heat transfer area ㎡ 0.109 Flange: Dn mm 25, 50
Plate spacing mm 4 working temperature ℃ ≤180
Cross-sectional area of single flow channel ㎡ 0.000656 Working Pressure MPa 0.6,1,1.6,2.5
Max.processing capacity m³/h 25 Angle hole diameter mm 50
Plate material ss304,316,316L Corrugation height 3
