WZ Series Marine Multistage Self Priming Vortex Pump

WZ Series Marine Multistage Self Priming Vortex Pump

Overview:

WZ Series is suitable for conveying at a temperature of -20℃ ~+80 ℃, viscosity of not more than 5oE without solid particles, volatile, easy gasification of seawater and freshwater. Can be used for ship, petroleum, chemical industry, printing and dyeing industry, hotels, villas and high-rise living water for boiler. This type pump has the advantages of small volume, light weight, strong self-absorption, can be equipped with motor, gasoline engine, diesel engine as power.

Model Explanation of 32WZ-18×3 Marine Multistage Self Priming Vortex Pump:

32-Inlet and outlet diameter 32 mm;

W-Vortex pump;

Z-Self-priming;

18-Single grade head 18m;

3-Series for the three.

Drawing of WZ Series Marine Multistage Self Priming Vortex Pump:




Performance Parameters of WZ Series Marine Multistage Self Priming Vortex Pump:

WZ

50HZ/1450RPM

60HZ/1800RPM

50HZ/60HZ

Type

Capacity

(m3/h)

Head

(m)

Motor power

(kW)

Capacity

(m3/h)

Head

(m)

Motor power

(kW)

HS(m)

Efficiency

(%)

Impeller Dia.

(mm)

Weight

(kg)

20WZ

-14×2

0.79

38

0.75

0.95

54.7

1.5

8

14

100

10

1.44

28

1.73

40.3

7.5

23

1.80

20

2.16

28.8

7

22

20WZ

-14×3

0.79

57

1.1

0.95

82.1

2.2

8

14

13

1.44

42

1.73

60.5

7.5

23

1.80

30

2.16

43.2

7

22

20WZ

-14×4

0.79

76

1.5

0.95

109.4

3

8

14

16

1.44

56

1.73

80.6

7.5

23

1.80

40

2.16

57.6

7

22

25WZ

-16×2

1.80

46

1.5

2.16

66.2

3

7.5

20

110

13

2.88

32

3.46

46.1

7

28

3.60

22

4.32

31.7

6.5

27

25WZ

-16×3

1.80

69

2.2

2.16

99.4

4

7.5

20

17.6

2.88

48

3.46

69.1

7

28

3.60

33

4.32

47.5

6.5

27

25WZ

-16×4

1.80

92

3

2.16

132.5

5.5

7.5

20

22

2.88

64

3.46

92.2

7

28

3.60

44

4.32

63.4

6.5

27

32WZ

-18×2

3.60

50

3

4.32

72.0

5.5

7

25

132

19

5.40

36

6.48

51.8

6.5

32

6.48

24

7.78

34.6

6

29

32WZ

-18×3

3.60

75

4

4.32

108.0

7.5

7

25

132

22

5.40

54

6.48

77.8

6.5

32

6.48

36

7.78

51.8

6

29

32WZ

-18×4

3.60

100

5.5

4.32

144.0

11

7

25

25

5.40

72

6.48

103.7

6.5

32

6.48

48

7.78

69.1

6

29

40WZ

-28×2

6.12

84

7.5

7.34

121.0

15

6.5

25

148

38

9.00

56

10.8

80.6

6

33

10.80

34

12.96

49.0

5.5

31

40WZ

-28×3

6.12

126

11

7.34

181.4

18.5

6.5

25

45

9.00

84

10.8

121.0

6

33

10.80

51

12.96

73.4

5.5

31

40WZ

-28×4

6.12

168

15

7.34

241.9

22

6.5

25

148

52

9.00

112

10.8

161.3

6

33

10.80

68

12.96

97.9

5.5

31

50WZ

-32×2

11.70

88

11

14.04

126.7

18.5

6

30

170

49

14.40

64

17.28

92.2

5.5

35

18.00

40

21.6

57.6

5

34

50WZ

-32×3

11.70

132

18.5

14.04

190.1

30

6

30

60

14.40

96

17.28

138.2

5.5

35

18.00

60

21.6

86.4

5

34

65WZ

-36×2

17.25

102

22

20.7

146.9

30

5.5

30

190

21.60

72

25.92

103.7

5

36

27.00

42

32.4

60.5

4.5

35

65WZ

-36×3

17.25

153

30

20.7

220.3

45

5.5

30

21.60

108

25.92

155.5

5

36

27.00

63

32.4

90.7

4.5

35

Sectional View of WZ Series Marine Multistage Self Priming Vortex Pump:

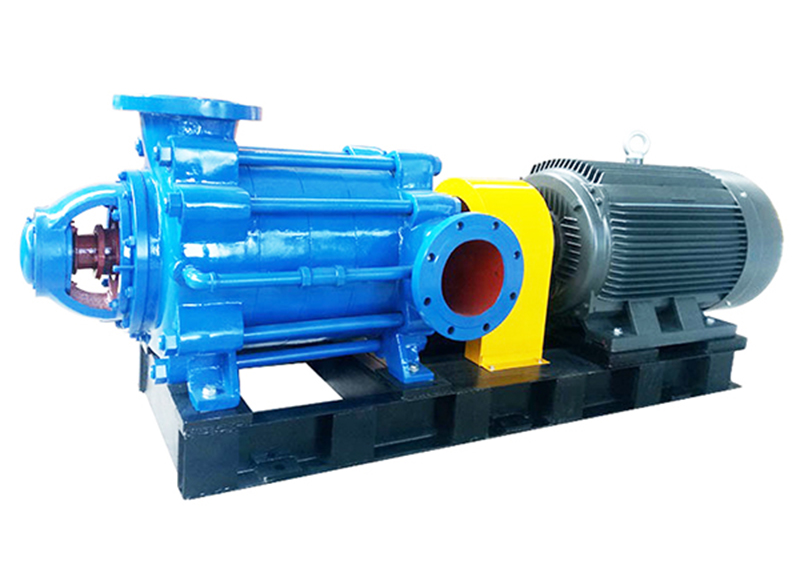

Picture of WZ Series Marine Multistage Self Priming Vortex Pump:
