Turn Cell Rubber Fender


Turn Cell Rubber Fender
Overview
The Turn Cell Rubber Fender can be used on entrance channel, locks and dry docks to protect the structure. Act as a guiding system for a vessel through a passage is the main purpose of Turn Cell Fender.
This kind of fender is more durable, by rotating in the direction of the impact. In order to suit for the rolling and pitching of vessels during loading and unloading of cargo, the Turn Cell Fender should be installed vertically.

Key Features of Turn Cell Rubber Fender
. Good energy absorption
. Gentle contact face
. Low maintenance frame design
. Used singly or in multiple stacks
. Low rolling resistance
. The performance is free from the influence of ship

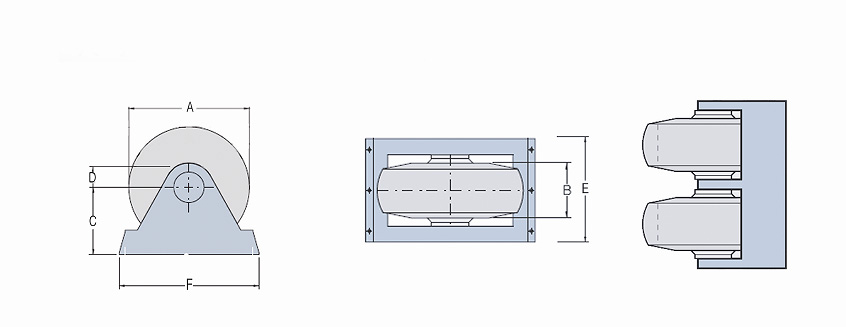

Drawing of Turn Cell Rubber Fender


Dimension & Specifications

Model Aφ（mm） B （mm） C      （mm） D （mm） E          （mm） F （mm） G   # Turn Cells Weight (KG)
D1-060-20 600 200 320 110 420 695 1 120
D1-075-25 750 250 400 140 510 870 1 230
D1-090-30 900 300 480 165 610 1040 1 410
D1-120-40 1200 400 640 220 820 1380 1 980
D1-150-50 1500 500 800 275 1010 1740 1 1810
D1-180-60 1800 600 960 330 1210 2080 1 3130
D1-210-70 2100 700 1155 385 1410 2440 1 4800
D1-240-80 2400 800 1280 440 1610 2770 1 6040
D2-060-20 600 200 320 110 770 695 2 210
D2-075-25 750 250 400 140 935 870 2 420
D2-090-30 900 300 480 165 1120 1040 2 775
D2-120-40 1200 400 640 220 1500 1380 2 1770
D2-150-50 1500 500 800 275 1850 1740 2 3330
D2-180-60 1800 600 960 330 2215 2080 2 5720
D2-210-70 2100 700 1155 385 2590 2440 2 9750
D2-240-80 2400 800 1280 440 2950 2770 2 12400
D3-060-20 600 200 320 110 1120 695 3 310
D3-075-25 750 250 400 140 1360 870 3 610
D3-090-30 900 300 480 165 1630 1040 3 1080
D3-120-40 1200 400 640 220 2180 1380 3 2550
D3-150-50 1500 500 800 275 2690 1740 3 4850
D3-180-60 1800 600 960 330 3220 2080 3 840
D3-210-70 2100 700 1155 385 3770 2440 3 13670
D3-240-80 2400 800 1280 440 4290 2770 3 18390
Energy Absorption and Reaction Force Performance

Model Max. Defection   (mm) Reaction Force    (KN) Energy Absorption (KN-M)
D1-060-20 125 70 2.5
D1-075-25 157 110 4.8
D1-090-30 184 150 3.8
D1-120-40 260 270 19.6
D1-150-50 325 430 38.4
D1-180-60 390 620 66.3
D1-210-70 455 840 107
D1-240-80 520 1100 157
D2-060-20 125 140 50
D2-075-25 157 210 10
D2-090-30 184 310 17
D2-120-40 260 550 39
D2-150-50 325 860 77
D2-180-60 390 1240 133
D2-210-70 455 1690 210
D2-240-80 520 2200 320
D3-060-20 125 210 7
D3-075-25 157 320 14
D3-090-30 184 460 25
D3-120-40 260 820 60
D3-150-50 325 1280 110
D3-180-60 390 1850 200
D3-210-70 455 2520 320
D3-240-80 520 3290 470
Performance Tolerance ±10%
Typical Applications

. Dry-dock entrances and walls
. Lock approaches
. Some exposed corners and entrances

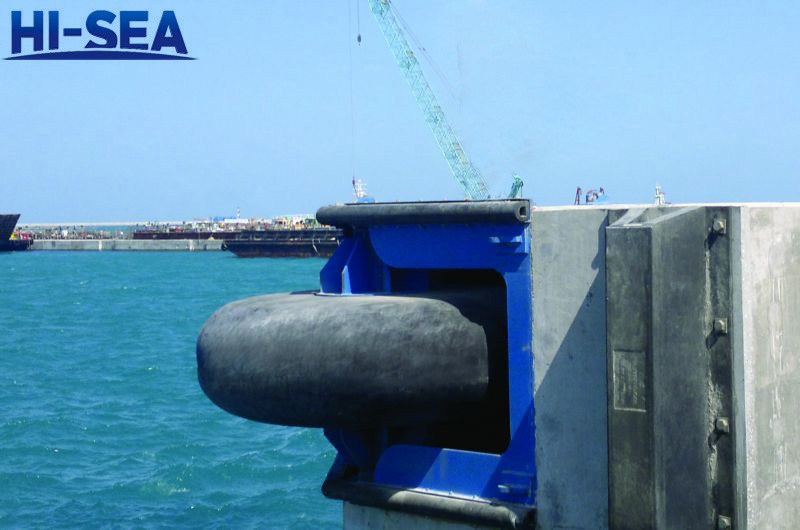

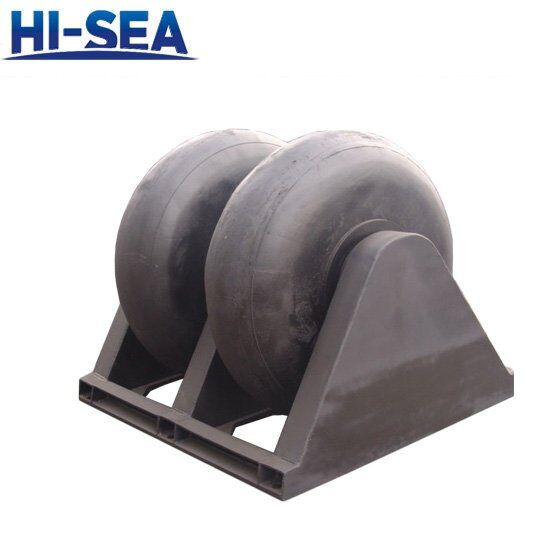

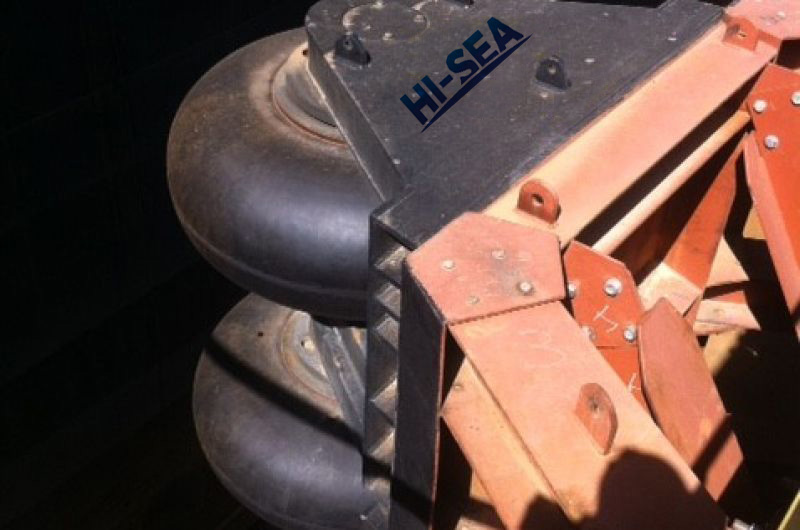

Picture of Turn Cell Rubber Fender
