1. Preface of Steel Peening House

    SXY series steel peening houses are comprised of cross in-feed transverse conveying unit (option), in-feed conveying rollers, shot blasting system, dust removing system, painting system, drying system, organic gas and paint mist treatment device, out-feed conveying system cross out-feed transverse conveying unit (option) and electrical system and so on. This equipment is mainly used to do shot blasting to steel plate / profiles to get a clean surface of Sa2.5 with certain roughness. After shot blasting, the painting system will paint anti-rust coating layer on steel. This ensures no second pollution during processing.
    The whole line of this production line is 58mtr.s. It is controlled by PLC electrical controller.

2. Steel Peening House Characteristics

   (1) Shot blasting, painting of steel plates.
    (2) Preparation surface for next procedure.
    (3) Engineer machine, Mining machine, Chemical equipment, pressure vessel, Vehicle traffic, ship building and Building/Construction material.
    (4) Uncomplicated operation, high-quality, easy maintenance and cleaning, low operating costs as well as being informed about environmental restrictions and paint developments are the keynotes for our shot blasting and painting lines.
   (5) Products, based on clear long-term technological concepts, have the technical maturity and quality to ensure maximum customer benefit!

3. Steel Peening House Technical Parameters

     The technical parameter is optional, we can accommodate your requirements, please don’t hesitate to contact us!

Model

SXY2500

SXY3000

SXY3500

SXY4000

SXY4500

SXY5000


Size (W×T×L)

2500x60x12000mm

3000x60x12000mm

3500×60×12000mm

4000×60×12000mm

4500×60×12000mm

5000×60x12000mm

Shot blasting system

Max loading

1.5t/m

2 t/m

2t/m

2t/m

2t/m

3t/m

Working speed

1.0-3.0m/min

1.0-3.0m/min

1.0-3.0m/min

1.0-3.0m/min

1.0-3.0m/min

1.0-3.0m/min

Blasting volume

350kg/min×6

350kg/min×6

400kg/min×8

400kg/min×8

480kg/min×8

480kg/min×8

Power

22kw×6

22kw×6

30kw×8

30kw×8

37kw×8

37kw×8

Delivery capacity

126t/h

126t/h

192t/h

192 t/h

230t/h

230t/h

Lifting capacity

126t/h

126t/h

192t/h

192 t/h

230t/h

230t/h

Separating capacity

126t/h

126t/h

192t/h

192 t/h

230t/h

230t/h

Rolling brush size

900mm

900mm

900mm

900mm

900mm

900mm

Shots cleaning off
air blower

9-19No.5A
15kw×2

9-19No.5A
15kw×2

9-19No.5A
15kw×2

9-19NO.5.6A
18.5kw×2

9-19NO.5.6A
18.5kw×2

9-19NO.5.6A
18.5kw×2

Air volume for
dust collector

32000 m3/h

32000 m3/h

38000 m3/h

45000 m3/h

45000 m3/h

45000 m3/h

Painting system

Paint pump
Pressure ratio
Pressure

GRACO
32
1
0.6MPa

GRACO
32
1
0.6MPa

GRACO
45:1
0.6MPa

GRACO
45:1
0.6MPa

GRACO
45:1
0.6MPa

GRACO
45:1
0.6MPa

Spray gun
Quantity
Moving speed

206-513
2
20 -50m/min

206-513
2
20 -50m/min

206-513
4
20 -50m/min

206-513
4
20 -50m/min

206-513
4
20 -50m/min

206-513
4
20 -50m/min

Paint mist purity
Blower

Filter paper
7.5kw

Filter paper
11kw

Filter paper
15kw

Filter paper
15kw

Filter paper
15kw

Filter paper
15kw

Drying system

Temperature in
chamber

40-70℃

40-70℃

40-70℃

40-70℃

40-70℃

40-70℃

Drying type

Heat air

Heat air

Heat air

Heat air

Heat air

Heat air

Heating

Electric heat

Electric heat

Electric heat

Electric heat

Electric heat

Electric heat

Air volume
Power

6950m3/h
3kw

6950m3/h
3kw

6950m3/h
3kw

6950m3/h
3kw

6950m3/h
3kw

6950m3/h
3kw


Surface quality

Sa2.5

Sa2.5

Sa2.5

Sa2.5

Sa2.5

Sa2.5


Total power

450KW

450KW

558kw

558kw

600KW

612KW

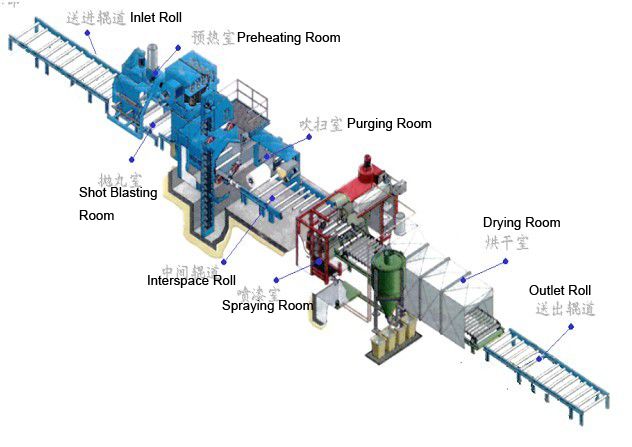

4. General Drawing of Steel Peening House
