Standard Modular Floating Pontoon Dock

Standard Modular Floating Pontoon Dock


Description:

A standard modular floating pontoon dock is a versatile and customizable structure used in marine environments to provide stable and accessible platforms for various activities. It consists of individual pontoon modules that can be connected together to create a larger floating dock system.
Each pontoon module typically comprises a sturdy frame made of high-density polyethylene (HDPE) or other durable materials, which provides buoyancy and structural integrity. The modules are designed to be lightweight, allowing for easy transportation and assembly. They are often hollow, allowing them to float on the water's surface.
The modules are interconnected using a system of connectors, usually made of stainless steel or heavy-duty plastic, that securely link the modules together. This modular design enables the dock to be easily configured and reconfigured to suit different layouts, shapes, and sizes, making it adaptable to various waterfront applications.
The top surface of the pontoon dock is usually textured or non-slip, ensuring safe footing for people and vehicles. It can be customized with additional features such as handrails, cleats for boat mooring, access ramps, and utility channels for electrical or water connections. Some docks may also include built-in flotation chambers for added stability.
The modular floating pontoon dock is highly versatile and can be used for a range of purposes, including boat mooring and docking, swimming and diving platforms, fishing piers, waterfront recreation areas, temporary bridges, and even floating homes. It is commonly found in marinas, private waterfront properties, commercial ports, and recreational water bodies.
One of the advantages of this type of dock is its ease of installation and flexibility. It can be quickly assembled, disassembled, and modified as needed. Additionally, the use of durable and corrosion-resistant materials ensures longevity and minimal maintenance requirements.
Overall, the standard modular floating pontoon dock offers a reliable and customizable solution for creating stable platforms on water, providing easy access and enhancing the functionality of waterfront spaces.

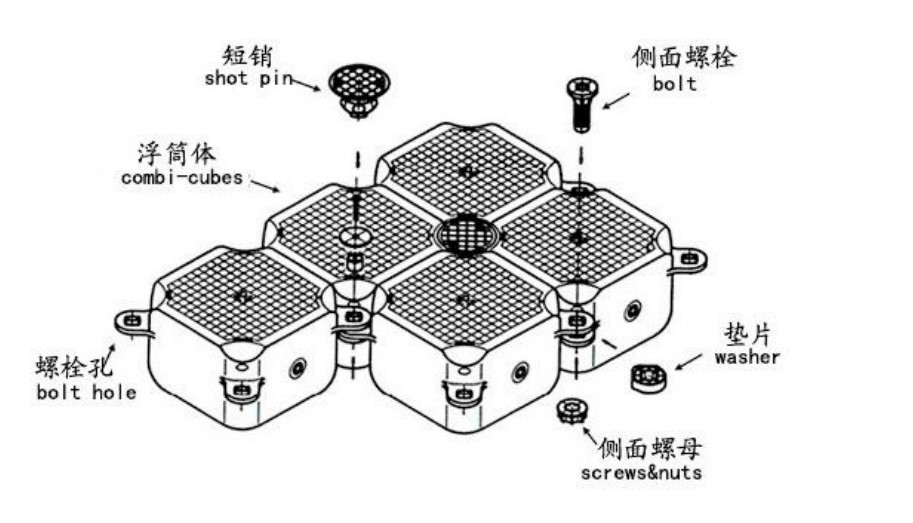

Installation Instruction:


Specification:

Material: HMWHDPE

Single cube Size: 500*500*400mm

Gross Weight: 7kg±0.2kg

Bearing Capacity:350kg/m²

Color: Blue, orange, gray, black, brown, yellow

Application:Pontoon wharf, yacht wharf, floating pontoon bridge, motorboat berth, water park, water stage, floating dock, water park, motorboat berth and other water engineering projects.

Case of Standard Modular Floating Pontoon Dock :


The vertical bearing capacity of the floating dock:

(1) Monomer buoy height of 40 cm, every square meter is composed of four buoy, 100% load of 350 kg 1 per square metre.

(2) No-load draft depth of about 2.5 ~ 3cm;

(3) Carry 230 kg (about 15 ~ 20 cm deep drawing (safety);

(4) When carrying 350 kg at depths of about 35 ~ 40 cm (load limit).

(5) Double buoy height is 80 cm, every square meter is composed of eight buoy, 100% load of 640 kg 1 per square metre.

(6) No load draft depth of about 3 ~ 5 cm;

(7) Carry 460 kg of deep drawing about 40 ~ 50 cm (safe use);

(8) When carrying 700 kg at depths of about 70 ~ 80 cm (load limit).

Anchorage method of floating wharf:

1. When the water depth is less than 3 meters, steel piles should be fixed at appropriate positions and connected with roller sliding frame to prevent the floating wharf from moving horizontally from left to right and automatically rise and fall with the water level.

2. Water depth is more than 3 m, recommend sink anchor fixed bottom, steel cable cross traction mode of anchorage.

Note:

1. Temperature: from -60°C to ≤80°C is the normal working environment of our platform.

2. Strong corrosion resistance, UV protection, antifreeze, resistance to seawater, the erosion of chemical agent, oily be soiled, etc.

3. Water waves within 2-3 for safe use scope.

4. Surface waves can be used within 3-5, but it must be to strengthen security protection, prevent tourists slipped.

5. Surface waves within 5-8 to limit usage. (ships berthing and tourist boats up and down is not recommended)
