Ship Engine Room Skylight

Ship Engine Room Skylight

Skylights are often installed on top of cabins where light and air are not available. It can be roughly divided into two categories: one is the deck window which is only used for lighting, which is often used in the crew cabin, work cabin, storage room, etc.; the other is the deck skylight, which is usually set in the kitchen, walkway, etc., and the skylight of the machine furnace cabin is engine room skylight. skylight are available with pneumatic skylights, electric skylight, hydraulic skylight and mechanical transmission skylight. It's used for deck house on steel ship or superstructure on exposed deck. We provide two skylights: long side open and short edge open. Our skylight is made of high quality steel and is has advantages of durable and has a long service life. Aluminum skylight for yacht is available. This product complies with CB*3038-78 standards with major IACS approvals like ABS, BV, CCS, DNV-GL, KR, LR, RINA, NK, RMRS.

Parts


Configuration Options

Part name

Material

Pros & Cons

Cover&Coaming

AL6063

Good plasticity, moderate heat treatment strength, good welding performance and gorgeous color on the surface after anodizing treatment.

Q235-A

Good toughness and plasticity, certain elongation, hot workability. Welding performance is weak than Q235-B

Shutter plate

AL6063

Good plasticity, moderate heat treatment strength, good welding performance and gorgeous color on the surface after anodizing treatment.

Q235-A

Good toughness and plasticity, certain elongation, hot workability. Welding performance is weak than Q235-B

Q235-B

Good welding performance, Good low temperature toughness

Hinge

SUS304

Sturdy and not easy to damage, and resistant to seawater corrosion

Q235

Good welding performance, Good low temperature toughness

Handle

SUS304

Sturdy and not easy to damage, and resistant to seawater corrosion

Q235

Good welding performance, Good low temperature toughness

Clip

SUS304

Sturdy and not easy to damage, and resistant to seawater corrosion

Q235

Good welding performance, Good low temperature toughness

Window

Toughened Glass

The strength is several times higher than that of ordinary glass, the fragile property is improved, and the resistance to rapid cold and heat is higher than that of ordinary glass.

Comparison Differences

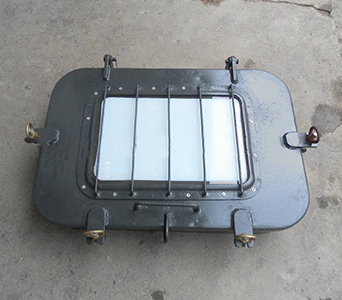

Other manufacturers low quality marine skylight

HI-SEA high quality marine skylight

1. The material of the skylight is cut corners, the thickness of the plate is thin, the window is fragile, and the service life is short.

2. The surface of the coaming plate, window cover, handle and other parts is uneven, the welding process is not good, there are burrs, sharp corners, etc.

3. The window glass is made of ordinary glass, which has low strength, is fragile and easily hurts passersby.

4. The surface of the window has not been properly treated for rust prevention and heat resistance, so it is not resistant to corrosion and high temperature. Maintenance costs are high.

1. The skylight is made of high-quality steel and aluminum, the structure is sturdy and durable, and the service life is long.

2. All parts of the skylight are treated with anti-rust treatment after processing, and the surface is smooth and flat, and there are no defects such as bubbles and burrs that affect the strength of the blinds.

3. After the skylight is assembled, the opening and closing test is carried out. The opening is flexible, the window cover is tightly fitted after closing, and there is no leakage when flushing, and the sealing performance is good.

4. The steel window cover is not only resistant to pressure and impact, but also has the function of fire prevention.


Drawing & Specifications:


/uploads/image/20180925/Drawing of Ship Skylight for Engine Room.jpg


Type

Size of Clear

B×L

Size of Cover

Size of Opening

B2×L2×r

Size of Clear t0 t1 H

Weight

Kg

C

D

600×900 635×935 590×890×95 600×900 4 5 120 45
800×1200 836×1236 790×1190×95 800×1200 4 5 63
1200×1600 1238×1638 1190×1590×95 1200×1600 5 6 131
1200×2000 1238×2023 1190×1990×95 1200×2000 5 6 159
Type C: long side open; Type D: short edge open.

Optional Certificates: CCS, BV, DNV.GL, ABS, NK, LR, RINA, IRS, RMRS

Product Showing:
