Quick Action Weathertight Hatch Cover

Quick Action Weathertight Hatch Cover

Quick Action Weathertight Hatch Cover is a type of small steel hatch cover, made of steel. It is weathertight and quick to open and close from both sides. This cover is anticorrosion, meeting the standards of ISO 5778-1994 and CB/T3728-1995. Variety types of ships can use this type of cover. We supply a number of ship equipment, please contact us to get more information.

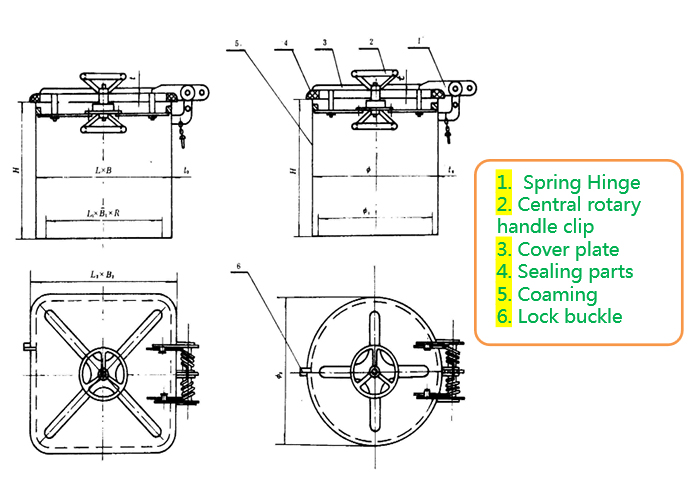

Drawing & Specifications:

/uploads/image/20180918/Drawing of Quick Action Weathertight Hatch Cover.jpg

Norminal size L*B clear size L1*B1*R Cover size L2*B2*R Cover thickness t Hatch centre ture clip qty weight without hatch Kg
t0 H
530*530 500*500*100 588*588 4 4,6 150 200 250 450 600 4 44.8
592*592 6 6,8 51.4
596*596 8 8,10 58
630*630 600*600*100 682*682 4 4,6 4 50
692*692 6 6,8 58.7
696*696 8 8,11 67.5
Φ530 500 588 4 4,6 4 42.2
592 6 6,8 47.5
596 8 8,11 52.8
Φ630 600 688 4 4,6 4 46.1
692 6 6,8 53.2
696 8 8,11 60.2

Optional Certificates: CCS, NK, IRS, BV, RMRS, RINA, LR, ABS, DNV.GL
