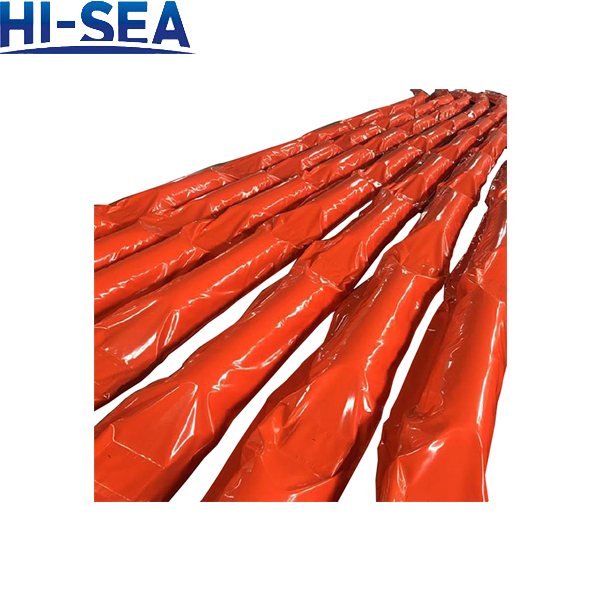

PVC Oil Containment Boom

PVC Oil Containment Boom

Description:

PVC Oil Containment boom is a simple, economical and effective boom, widely used in harbors, rivers, lakes, ponds, oil-water separation ponds and other occasions. With bright Jue PVC coated fabric high strength, oil resistance, resistance to seawater corrosion, resistance to ultraviolet radiation, the unique appearance of solid float, make it easier to store in the column on the body, and the department have their own stress structure, strength more assured, solid float between with elastic brace, keep oil gate straight, guarantee the effective depth of the draft. PVC fence layout, recycling is very simple. The boom can be equipped with hydraulic drive winding frame or hanging storage frame.

Detail of PVC Oil Containment Boom:


Detail of PVC Oil Containment Boom



Performance Reference:

Parameter/Model

SWL450

SWL750

SWL900

SWL1100

Overall Height(mm)

450

750

900

1100

Freeboard(mm)

150

250

300

400

Draft(mm)

300

500

600

700

Standard Length Per Section(m)

10,20

Ballast

Block or Chain

Weight(kg/m)

3.1

4.2

5.2

5.8

Storage rack for 60m

2.8*1.7*0.7

2.8*1.7*1.0

2.8*1.7*1.2

2.8*1.7*1.4

Overview of PVC Oil Containment Boom:

Material:PVC

Size: 20m (or customized)

Shape: boom

Feature: high strength

Color: orange

PVC Oil Containment Boom in Factory:

Marine PVC Oil Containment Boom:
