Open Reversible Inflatable Liferaft

Open Reversible Inflatable Liferaft

The inflatable liferaft is stowed in the liferaft container on the deck. When people pull the painter line, the liferaft is inflated in the sea. It is equipped with an automatic drain valve on the floor, which aims to make the raft fully inflate in 10 to 25 seconds after dropping at ordinary temperature. This can enable individuals to be promptly and safely evacuated into the life raft.

1.Application of the product：

International Voyage High-Speed Craft, Inland Waterways Ships And QiongZhou Straits Passenger Ships

2.Approval standard：

1.MSC.81（70）Revised Recommendation on Testing of Life-saving Appliances

2. International Code of Safety for High-Speed Craft(2000)

3.Sections 8, Chapter 3, Part Eight of MSA of P.R.C. Technical Regulations for the Statutory Surveys of Inland Waterways Ships 2004 and Revision 2008

4.MSC.293（87） and MSC.295（87） related requirement

3.Approval: CCS

4.Specification:

Width（mm）	Height（mm）	Weight（kgs）	Carrying Capacity	Max Storage Height（m）
4150	710	95	25	18
5710	860	200	50
6450	920	220	65

5.Photo：

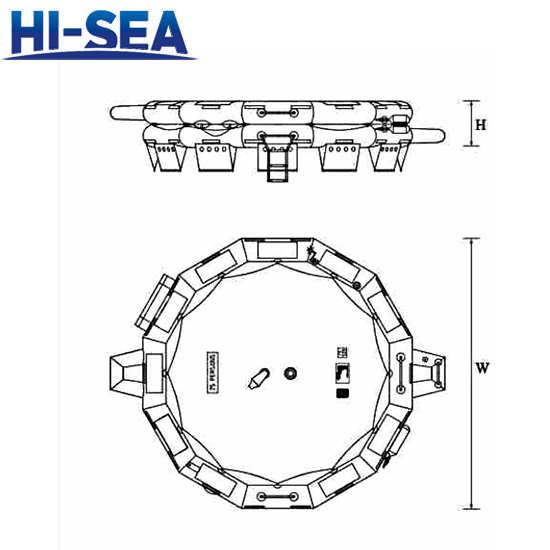

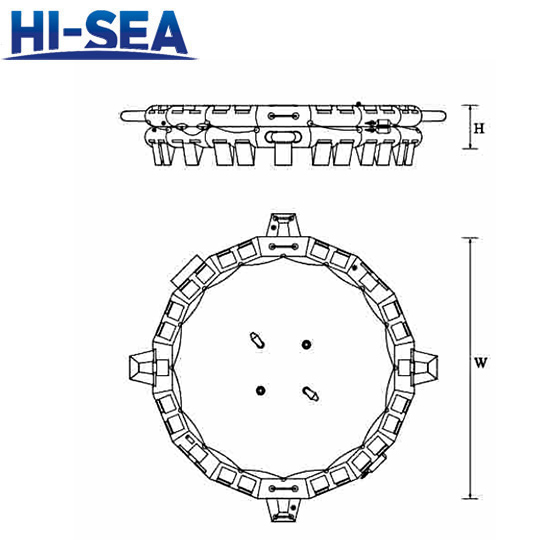

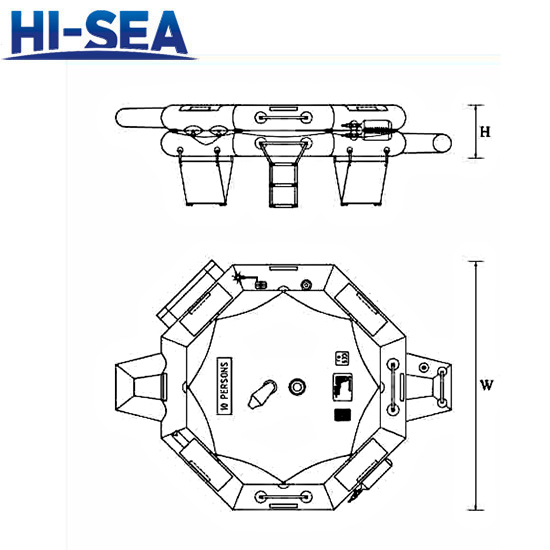

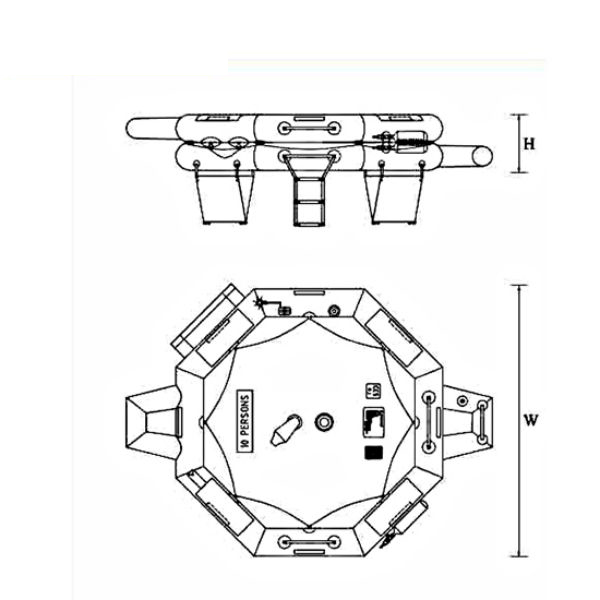

Drawing For Open Reversible Inflatable Liferaft
