OCIMF Type Chain Stopper

OCIMF Type Chain Stopper

Application: Chain stopper is positioned between the windlass and the hawsepipe deck, used for clamping the chain. Anchor-handling, anchor chains tension can be transferred to the ship, the anchoring machine is not in the state of stress. When sailing, chain stopper bearing anchor and anchor chain part of gravity, and will receive the hawsepipe within the anchor stick to hull, without collision.

The role of chain stopper :

A.let chain flat position on the wheel

B.prevent the decline of chain

C.fixed anchor chain tension spread to the hull

D.make beautiful design.

Anchor devices abandon the role of the chain:

A. make the end of the anchor fixed

B.make chain not in chaos

C.quickly disengagement chain and facilitate in case of emergency

D.easy maintain anchor chain overhaul

Model: roller bar type chain stopper, cast steel bar chain stopper and cast lever chain stopper

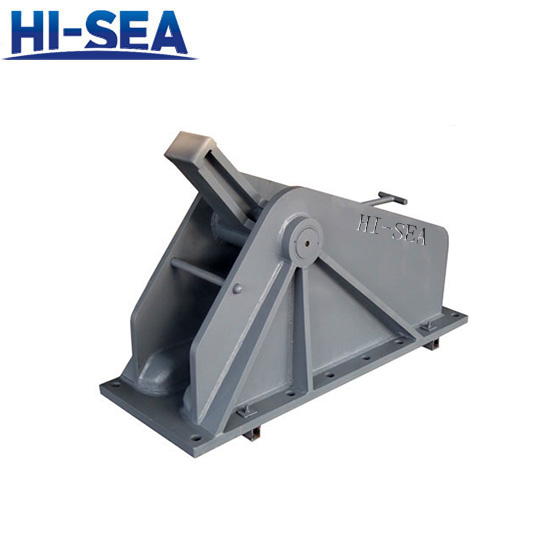

OCIMF Type Chain Stopper

1. Safe Working Load: 2000KN

2. Max. Breaking Load: 4000KN

3. Material: cast steel

4. Color: red, black, gray etc.

5. Plinth is optional

6. Chain Diameter: 54mm,55mm,56mm,76mm,77mm.78mm

7. Polished, galvanized smooth surface;

8. Certificate: CCS,ABS,BV,LR,NK etc.

9. Can be customized according to customer’s drawing.

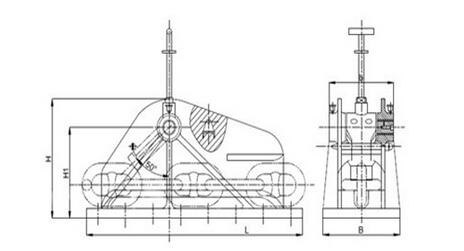

Drawing of OCIMF Type Chain Stopper:

Nominal Dia. of Chain(mm)

Dimensions(mm)

Weight(kg)

L

B

H

H1

b4

54-56

1336

474

631

481

400

488

76-78

1800

640

850

648

540

1421

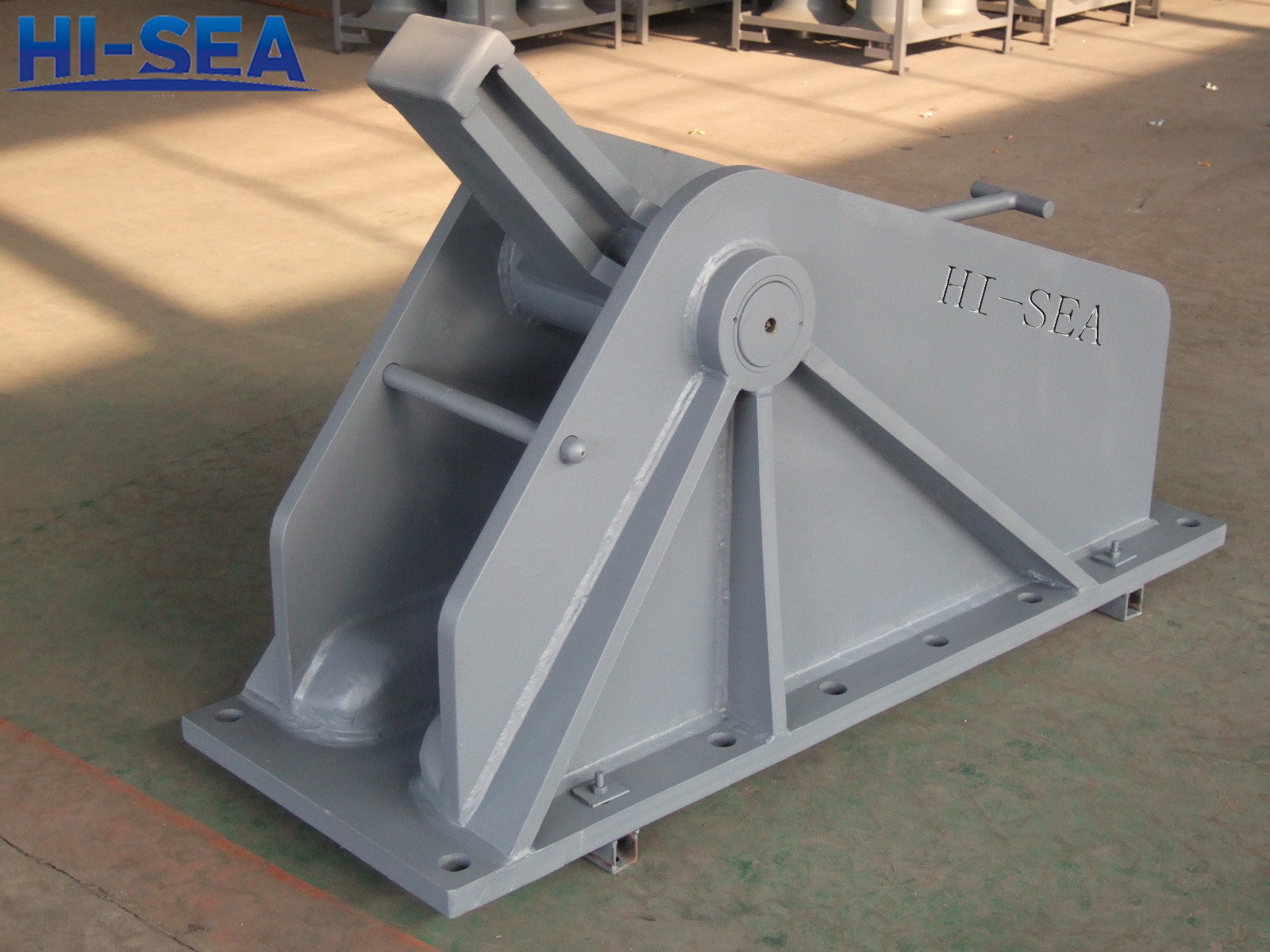

Mooring chain stopper in factory:

OCIMF Type Chain Stopper
