Multiple sampling cooler

Multiple sampling cooler




Technical  Parameter

Pipeline

Design pressure

16 Mpa

shell side

Design pressure

0.5 Mpa

Design Temperature

460

Design Temperature

5

Media

WaterSteam

WaterSteam

Nozzle description

No.

DN

Name

Connection

Material

N1

15(Φ22*4)

Sampling water outlet

Butt weld or flange

304

N2

15(Φ22*4)

Sampling water inlet

Butt weld or flange

304

N3

20(Φ27*)

Cooling water outlet

Butt weld or flange

20#

N4

20(Φ27*4

Cooling water inlet

Butt weld or flange

20#

N5

80(Φ89*4.5)

Drainage nozzle

Butt weld or flange

20#

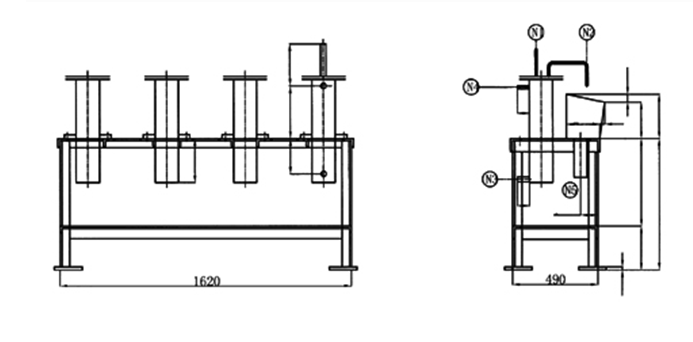

Drawing

Double sampling cooler


Triple sampling cooler


Quad sampling cooler


Five-sampling cooler


Six-sampling cooler
