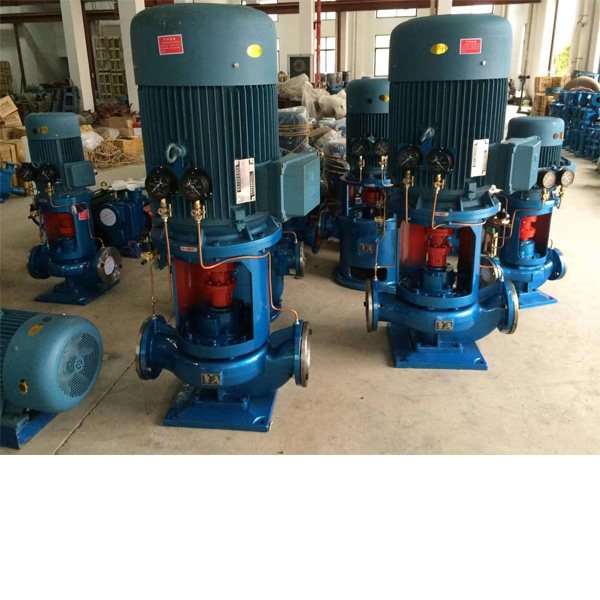

Marine Vertical Centrifugal Pump CLH series

Marine Vertical Centrifugal Pump CLH series


Overview:

CLH type pump is in accordance with ISO international standards and the design of a single stage, single suction, level inlet and outlet of the centrifugal pump, the motor shaft and the pump shaft flange connection is convenient to disassemble, is CSG (CSW) type pump improvement products. Can be used as various ship ballast pump, bilge pump, drainage pump, cooling pump, fire pump, and is also suitable for the petrochemical pipe City, high-rise building water and circulation system of the booster pump. Transmission fluid temperature not exceeding 75℃.

Note: CLH, CSG, CSGB, CSW performance parameters are the same.

Performance Parameter:

CLH

50HZ

60HZ

50HZ/60HZ

Type

Capacity

(m3/h)

Head

(m)

Speed

(rpm)

Motor power

(kW)

Weight

(kg)

Capacity

(m3/h)

Head

(m)

Speed

(rpm)

Motor power

(kW)

Efficiency

(%)

(NPSH)r

(m)

40-100

2.2

3.3

1400

0.12

17

2.6

4.8

1710

0.18

48

2.5

3.2

3

3.8

4.3

4.2

2.8

5

4

40-125

2.2

5.5

1400

0.18

19

2.6

7.9

1710

0.25

40

2.5

3.2

5

3.8

7.2

4.2

4.5

5

6.5

40-125A

2

4.4

1400

0.12

19

2.4

6.3

1710

0.18

39

2.5

2.8

4

3.4

5.8

3.7

3.6

4.4

5.2

40-160

2.2

8.5

1400

0.25

24

2.6

12.2

1710

0.37

36

2.5

3.2

8

3.8

11.5

4.2

7.5

5

10.8

40-160A

2

6.8

1400

0.18

22

2.4

9.8

1710

0.25

35

2.5

2.8

6.4

3.4

9.2

3.7

6

4.4

8.6

40-200

2.2

13

1450

0.55

38

2.6

18.7

1800

0.75

31

2.5

3.2

12.5

3.8

18

4.2

12

5

17.3

40-200A

2

10.4

1400

0.37

30

2.4

15

1710

0.55

30

2.5

2.8

10

3.4

14.4

3.7

9.6

4.4

13.8

40-250

2.2

20.5

1450

1.1

52

2.6

29.5

1800

1.5

25

2.5

3.2

20

3.8

28.8

4.2

18.5

5

26.6

40-250A

2

16.4

1450

0.75

47

2.4

23.6

1800

1.1

25

2.5

2.8

16

3.4

23

3.7

15

4.4

21.6

40-250B

1.6

13.2

1450

0.55

46

1.9

19

1800

0.75

24

2.5

2.3

13

2.8

18.7

3.4

12

4.1

17.3

40-100(I)

3.8

3.4

1400

0.12

17

4.6

4.9

1710

0.18

54

2.5

6.3

3

7.6

4.3

7.5

2.8

9

4

40-125(I)

3.8

5.4

1400

0.25

29

4.6

7.8

1710

0.37

54

2.5

6.3

5

7.6

7.2

7.5

4.6

9

6.6

40-125(I)A

3.4

4.3

1400

0.18

24

4.1

6.2

1710

0.25

52

2.5

5.6

4

6.7

5.8

6.7

3.7

8

5.3

40-160(I)

3.8

8.5

1450

0.55

43

4.6

12.2

1800

0.75

47

2.5

6.3

8

7.6

11.5

7.5

7.5

9

10.8

40-160(I)A

3

5.6

1400

0.25

30

3.6

8.1

1710

0.37

45

2.5

5.1

5.3

6.1

7.6

6.1

4.9

7.3

7.1

40-200(I)

3.8

13.1

1450

0.75

45

4.6

18.9

1800

1.1

40

2.5

6.3

12.5

7.6

18

7.5

12

9

17.3

40-200(I)A

3.3

10

1450

0.55

44

4

14.4

1800

0.75

39

2.5

5.5

9.5

6.6

13.7

6.5

9

7.8

13

Drawing:
