Marine Stock Anchor

Marine Stock Anchor

Introduction:

Marine stock anchor’s flukes and anchor shank are cast into a whole part and has a crossbar pass through the central shank. When using marine stock anchor, one fluke embeds into the deep soil with great holding power. Due to the cross bar, the stock anchor will not turnover on seabed, but it is not convenient for recovery. Therefore, it is mainly used for small ships or engineering ships. For more information, please feel free to contact us.

Main Types of Stock Anchor:

Admiralty Anchor:

Admiralty anchor’s features are simple structure, great holding power(4~8), good grip stability. It is mainly used for small ships, engineering ships and fishing boats.

Nominal Weight (kg)	H (mm)	H (mm)	h1 (mm)	B (mm)	C (mm)
50	960	230	42	635	185
75	1105	266	45	710	210
100	1215	293	49	780	230
125	1310	316	52	840	245
150	1395	336	55	900	265
200	1535	370	61	990	290
250	1650	398	65	1065	310
300	1755	423	70	1105	330
400	1930	465	77	1240	365
500	2080	502	84	1335	390
600	2210	533	89	1440	415
700	2330	560	93	1500	440
800	2435	587	97	1570	460
900	2530	610	101	1630	475
1000	2620	633	104	1685	495
1250	2825	680	112	1810	535
1500	3000	725	118	1955	565
2000	3300	797	131	2140	625
2500	3550	857	138	2270	672
3000	3780	912	150	2415	715
3500	3980	960	158	2540	750
4000	4160	1000	155	2650	785
5000	4480	1100	184	2830	800
6000	4740	1113	190	3000	876
7000	5025	1180	2000	3165	960
8000	5240	1280	210	3300	980
9000	5450	1330	220	3440	990
10000	5680	1340	230	3600	1085

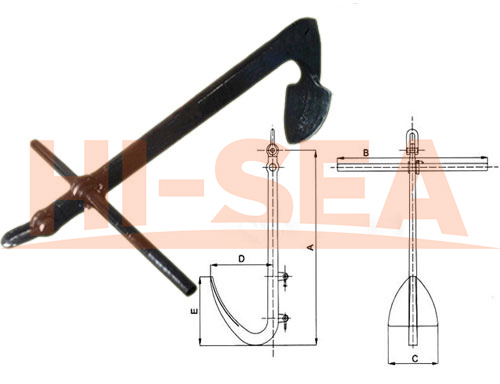

Single fluke anchor is one type of stock anchor that is applicable to engineering ships as working anchor.

Nominal Weight (kg)	Size(mm)
	A	B	C	D	E
75	1310	1100	360	455	465
100	1445	1200	400	500	510
150	1650	1380	455	575	585
200	1820	1520	505	630	645
300	2080	1740	575	725	735
400	2290	1915	635	800	810
500	2470	2065	680	855	875
600	2620	2190	725	910	930
800	2890	2415	800	1000	1020
1000	3110	2600	860	1080	1100
1250	3350	2800	925	1165	1185
1500	3560	2980	985	1235	1260
1750	3750	3135	1035	1300	1325
2000	3920	3275	1085	1360	1385
3000	4485	3750	1240	1555	1585
4000	4940	4125	1360	1710	1745
5000	5320	4440	1472	1845	1880
6000	5650	4720	1560	1960	1995
7000	5950	4970	1645	2065	2100
8000	6220	5200	1720	2155	2200
9000	6468	5400	1790	2240	2288
10000	6700	5600	1852	2320	2154
12000	7115	5950	1968	2465	2516
15000	7670	6410	2120	2657	2710
18000	8148	6810	2253	2823	2882
20000	8400	7020	2320	2910	2970
22000	8710	7275	2410	3020	3074
25000	9080	7590	2510	3146	3212

JIS stock anchor is similar to admiralty anchor.

Nominal Weight (kg)	H (mm)	L (mm)	B (mm)
500	2000	2065	1350
700	2260	2335	1510
750	2310	2342	1560
1000	2550	2637	1700
1500	2890	2960	1950
2000	3160	3272	2140
3000	3630	3555	2650
3500	3810	3820	2570
4000	4000	4135	2920
5000	4310	4470	3140
6000	4580	4740	3330
7000	4820	4980	3530
8000	5040	5215	3620
