Marine Horizontal Air Receiver

Marine Horizontal Air Receiver



Application

The marine horizontal air receiver serves several important functions in a ship's compressed air system. First, it acts as a buffer or reservoir for compressed air, allowing the system to meet sudden and intermittent demands for compressed air without the need for continuous operation of the air compressor. Second, it helps to remove moisture and other impurities from the compressed air, as these can cause damage to the ship's equipment and machinery if not removed. Finally, it provides a means for pressure regulation and control in the compressed air system. Marine horizontal air receivers come in a variety of sizes and capacities, depending on the specific needs of the ship and its compressed air system. They are typically inspected and tested regularly to ensure their safe and reliable operation.

For more marine horizontal air receiver information, please click here.

Features

1. Excellent sealing property. The tank is sealed device, no touching to make sure the water quality is not polluted.

2. Long life span. The rubber diaphragm can unfoleded more than 200 thousands times. Once filling air can use for a long time.

3. Safety. The diaphragm is food grade natural rubber, can used in the drinking system.

4. Certificate: ABS, CCS, BV, LR, RINA...

Drawing of Marine Horizontal Air Receiver


Technical Data
Technical Data
Model Capacity Design Pressure Work Pressure Design Temperature Internal Diameter Length Height Weight
m³/h mpa Mpa mm mm mm kg

B0.63-3.0

0.63 3.3 3.0 100 700 1800 1470 655
B0.8-3.0 0.8 3.3 3.0 100 700 2270 1470 780
B1.0-3.0 1.0 3.3 3.0 100 800 2200 1580 950
B1.6-3.0 1.6 3.3 3.0 100 900 2740 1680 1180
B2.5-3.0 2.5 3.3 3.0 100 1100 2890 1940 1925
B4.0-3.0 4.0 3.3 3.0 100 1200 3815 2040 2650
B6.3-3.0 6.3 3.3 3.0 100 1400 4400 2265 4230
B8.0-3.0 8.0 3.3 3.0 100 1500 4850 2365 4936
B10-3.0 10 3.3 3.0 100 1600 5320 2505 5785
B12-3.0 12 3.3 3.0 100 1700 6220 2605 7500
B14-3.0 14 3.3 3.0 100 1800 5880 2750 8770
Note:The models in stylebook are part of our products,if you have any requirement, please contact us.
Image of Marine Horizontal Air Receiver

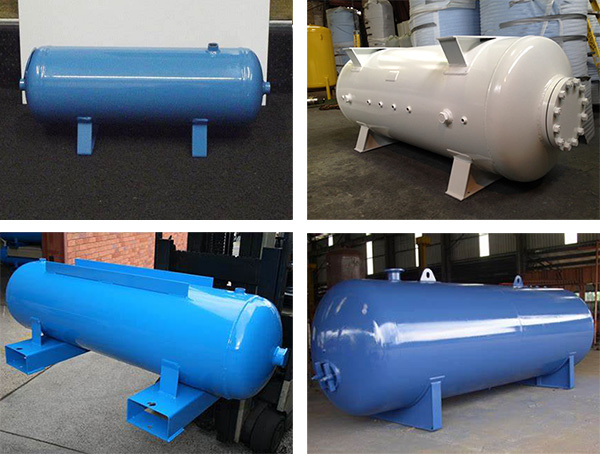

Marine Horizontal Air Receiver in Factory
