Marine DIN Angle Quick Closing Valve

Marine DIN Angle Quick Closing Valve

1. Introduction

Marine DIN angle quick closing valves are a specific type of quick closing valve that are designed to be installed at an angle in piping systems. These valves are commonly used in marine applications, particularly in fuel transfer and ballast systems, where space is limited and a compact valve design is required.

The design of marine DIN angle quick closing valves consists of a spring-loaded piston that is held in an open position by a latch mechanism. When the latch mechanism is released, the piston rapidly closes, shutting off the flow of fluid. The valve is designed to be installed at an angle, allowing for easier installation in confined spaces.

2. Material

Marine DIN angle quick closing valves are made from high-quality materials, such as bronze or stainless steel, to ensure durability and resistance to corrosion. They are designed to be easy to operate and maintain, with a simple and reliable design that allows for quick closure in emergency situations.

3. Nominal Diameter & Pressure

Diameter: DN15--DN125

Pressure: PN10/16

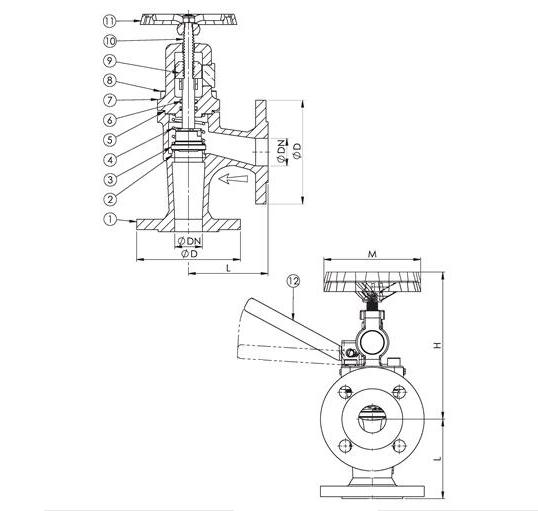

4. Main Size List

CODE

DN

Size  mm

Weight Kgs

D

L

H

M

87 46 11

12

13

14

15

15

20

25

32

40

95

105

115

140

150

90

95

100

105

115

180

180

185

185

215

125

125

125

125

150

5

6

7.5

9

12

87 46 16

17

18

19

20

50

65

80

100

125

165

185

200

220

250

125

145

155

175

200

215

250

265

315

340

150

150

150

200

200

16

27

33

46

66



5. IACS Certificate: RINA, ABS, BV, CCS,LR.
