Kenter Shackle

Kenter Shackle

Description:

A Kenter Shackle is a type of shackle used in marine applications, specifically for joining two sections of anchor chain or connecting an anchor chain to an anchor. It consists of two interlocking pieces, each with a round pin and a U-shaped body. The pins are inserted through the links of the chain, and the two U-shaped bodies are then locked together to form a secure connection. Kenter Shackles are commonly made from high-strength steel and are designed to withstand the harsh conditions of the marine environment. They are an essential component of any anchoring system and are used on ships, boats, and offshore structures.

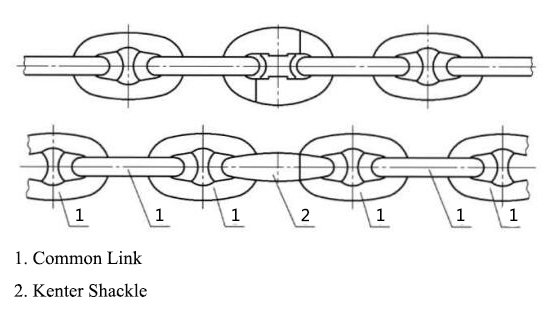

Connect Method of Kenter Shackle:


Drawing of Kenter Shackle:

Main Model of Kenter Shackle:

Nominal

Dia. of

Anchor

Chain

d

(mm)

A

B

Grade 2

Grade 3

Proof

Load

(KN)

Breaking

Load

(KN)

Proof

Load

(KN)

Breaking

Load

(KN)

12.5

75

53

66

92

92

132

14

84

59

82

116

116

165

16

96

67

107

150

150

216

17.5

105

74

127

179

179

256

19

114

80

150

211

211

301

20.5

123

86

175

244

244

349

22

132

92

200

280

280

401

24

144

101

237

332

332

476

26

156

109

278

389

389

556

28

168

118

321

449

449

642

30

180

126

368

514

514

735

32

192

134

417

583

583

833

34

204

143

468

655

655

937

36

216

151

523

732

732

1050

38

228

160

581

812

812

1160

40

240

168

640

896

896

1280

42

252

176

703

981

981

1400

44

264

185

769

1080

1080

1540

46

276

193

837

1170

1170

1680

48

288

202

908

1270

1270

1810

50

300

210

981

1370

1370

1960

52

312

218

1060

1480

1480

2110

54

324

227

1140

1590

1590

2270

56

336

235

1220

1710

1710

2430

58

348

244

1290

1810

1810

2600

60

360

252

1380

1940

1940

2770

62

372

260

1470

2060

2060

2940

64

384

269

1560

2190

2190

3130

66

396

277

1660

2310

2310

3300

68

408

286

1750

2450

2450

3500

70

420

294

1840

2580

2580

3690

73

438

307

1990

2790

2790

3990

76

456

319

2150

3010

3010

4300

78

468

328

2260

3160

3160

4500

81

486

340

2410

3380

3380

4820

84

504

353

2580

3610

3610

5160

87

522

365

2750

3850

3850

5500

90

540

378

2920

4090

4090

5840

92

552

386

3040

4260

4260

6080

95

570

399

3230

4510

4510

6440

97

582

407

3340

4680

4680

6690

100

600

420

3530

4940

4940

7060

102

612

428

3660

5120

5120

7320

105

630

441

3850

5390

5390

7700

107

642

449

3980

5570

5570

7960

111

666

466

4250

5940

5940

8480

114

684

479

4440

6230

6230

8890

117

702

491

4650

6510

6510

9300

120

720

504

4850

6810

6810

9720

122

732

512

5000

7000

7000

9990

124

744

521

5140

7200

7200

10280

127

762

533

5350

7490

7490

10710

130

780

546

5570

7800

7800

11140

132

792

554

5720

8000

8000

11420

137

822

575

6080

8510

8510

12160

142

852

596

6450

9030

9030

12910

147

882

617

6840

9560

9560

13660

152

912

638

7220

10100

10100

14430

157

942

659

7600

10640

10640

15200

162

972

680

7990

11180

11180

15980

Features:

Type: Kenter Shackle;

Material: Forged Steel;

Grade: Grade 2, Grade 3;

Surface: Black Bituminous Painted;

Size: 12.5mm~162mm;

Packing: Carton or Wooden Case;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc.
