Anchor Chain Swivel Group

Anchor Chain Swivel Group

Introduction:

An anchor chain swivel is a type of device used in boating to connect the anchor chain to the anchor. It is designed to prevent the chain from twisting and tangling when the boat swings with changes in wind or tide.

A chain swivel group typically includes multiple swivels that are connected together in series, providing extra strength and reliability. The swivels are made from high-grade materials such as stainless steel to ensure durability and resistance to corrosion.

The design of the swivel group allows for easy installation and removal, and it is commonly used by boaters who frequently anchor in changing conditions. It can also be used in combination with other anchoring equipment such as shackles and hooks to create a secure and reliable anchoring system.

Overall, the use of an anchor chain swivel group can help to improve the safety and stability of a boat when at anchor, providing peace of mind for boaters while they enjoy their time on the water.


Joining Form:

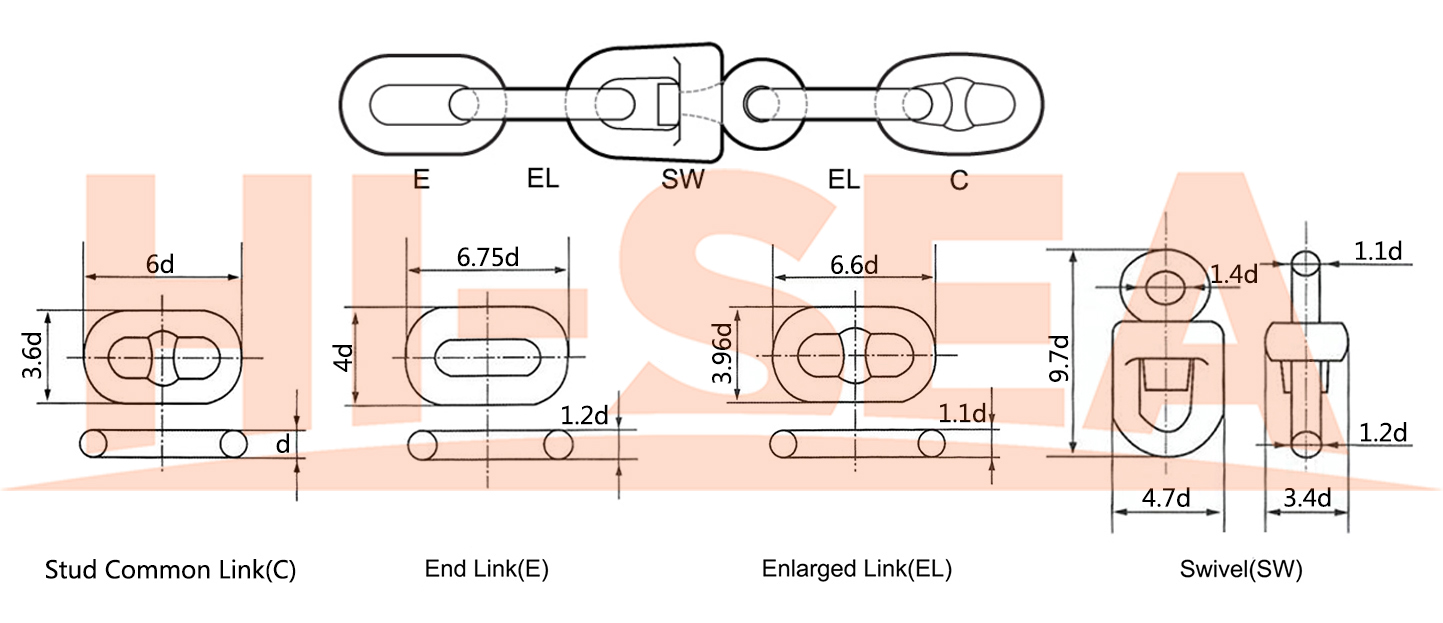

Endlink(E) + Enlarged Link(EL) + Swivel(SW) + Enlarged Link(EL) + Common Link(C)


Overview:

Type: Anchor Chain Swivel Group;

Material: Forged Steel;

Grade: U2, U3;

Nominal Diameter: 12.5mm~162mm;

Surface: Black Bituminous Painted, Hot Dip Galvanized;

Size: 12.5mm~162mm;

Packing: Carton or Wooden Case;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc..

Specifications of Anchor Chain of Grade 2 and Grade 3:

Nominal

Dia. of

Anchor

Chain

Common

Link

d

(mm)

Grade 2

Grade 3

Proof

Load

(KN)

Breaking

Load

(KN)

Proof

Load

(KN)

Breaking

Load

(KN)

12.5

66

92

92

132

14

82

116

116

165

16

107

150

150

216

17.5

127

179

179

256

19

150

211

211

301

20.5

175

244

244

349

22

200

280

280

401

24

237

332

332

476

26

278

389

389

556

28

321

449

449

642

30

368

514

514

735

32

417

583

583

833

34

468

655

655

937

36

523

732

732

1050

38

581

812

812

1160

40

640

896

896

1280

42

703

981

981

1400

44

769

1080

1080

1540

46

837

1170

1170

1680

48

908

1270

1270

1810

50

981

1370

1370

1960

52

1060

1480

1480

2110

54

1140

1590

1590

2270

56

1220

1710

1710

2430

58

1290

1810

1810

2600

60

1380

1940

1940

2770

62

1470

2060

2060

2940

64

1560

2190

2190

3130

66

1660

2310

2310

3300

68

1750

2450

2450

3500

70

1840

2580

2580

3690

73

1990

2790

2790

3990

76

2150

3010

3010

4300

78

2260

3160

3160

4500

81

2410

3380

3380

4820

84

2580

3610

3610

5160

87

2750

3850

3850

5500

90

2920

4090

4090

5840

92

3040

4260

4260

6080

95

3230

4510

4510

6440

97

3340

4680

4680

6690

100

3530

4940

4940

7060

102

3660

5120

5120

7320

105

3850

5390

5390

7700

107

3980

5570

5570

7960

111

4250

5940

5940

8480

114

4440

6230

6230

8890

117

4650

6510

6510

9300

120

4850

6810

6810

9720

122

5000

7000

7000

9990

124

5140

7200

7200

10280

127

5350

7490

7490

10710

130

5570

7800

7800

11140

132

5720

8000

8000

11420

137

6080

8510

8510

12160

142

6450

9030

9030

12910

147

6840

9560

9560

13660

152

7220

10100

10100

14430

157

7600

10640

10640

15200

162

7990

11180

11180

15980

Display of Anchor Chain Swivel Group:
