J Chaser Hook

J Chaser Hook

Introduction:

J chaser hook is attached by wire ropes to the winch of the anchor handling tug at approximately 1/3 of the water depth. After “snagging” the anchor chains, J chaser hook is towed into contact with the anchor shank and flukes enabling the tug to lift and board the anchor. It will handle anchors to 30 tonnes in weight and stud link chain up to 4-1/2 inches diameter.

Drawing of J Chaser Hook:

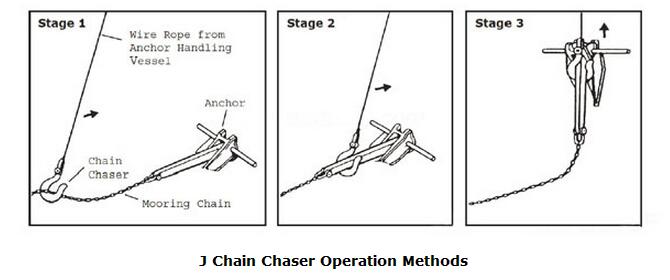

Operation Method of J Chaser Hook:

Parameters of J Chaser Hook:

Proof

Test

(ton)

S.W.L

(ton)

A

(mm)

B

(mm)

C

(mm)

D

(mm)

E

(mm)

F

(mm)

Weight

(kg)

250

100

2436

1827

306

125

85

700

1884

400

250

2572

2184

456

180

144

700

3398

Features:

Model Type: J Chaser Hook;

SWL: 110t, 250t;

Material: Casting Steel;

Surface Treatment: Black Bitumen Paint;

Certificates: CCS, ABS, BV, LR, NK, RINA, etc.
