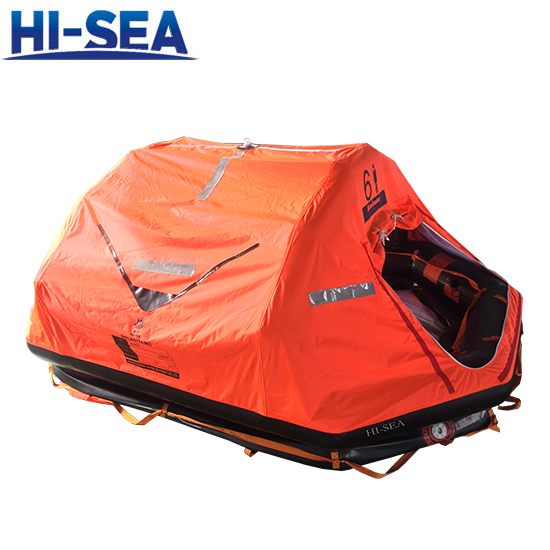

Fishing Inflatable Liferaft

Fishing Inflatable Liferaft

The inflatable liferaft is stowed in the liferaft container on the deck. When people pull the painter line, the liferaft is inflated with liquefied CO2 gas (partially mixed with N2 gas) in the sea. It is equipped with automatically unfolding boarding ramp, adiabatic canopy and floor as well as large water pocket. The raft fully inflates in 10 to 25 seconds after dropping at ordinary temperature so as to enable individuals to promptly and safely be evacuated into the life raft.

1.Application of the product：Fishing

2.Approval standard：

Rules of Statutory Survey of Fishing Vessel

3.Approval: ZY

4.Specification:

Length（mm）	Width（mm）	Height（mm）	Weight（kg）	Carrying Capacity	Max Storage Height（m）
2574	2574	1300	80	10	18
2787	2787	1400	95	12
3090	3090	1500	115	15
3510	3510	1800	135	20
3950	3950	2000	150	25

5.Photo：

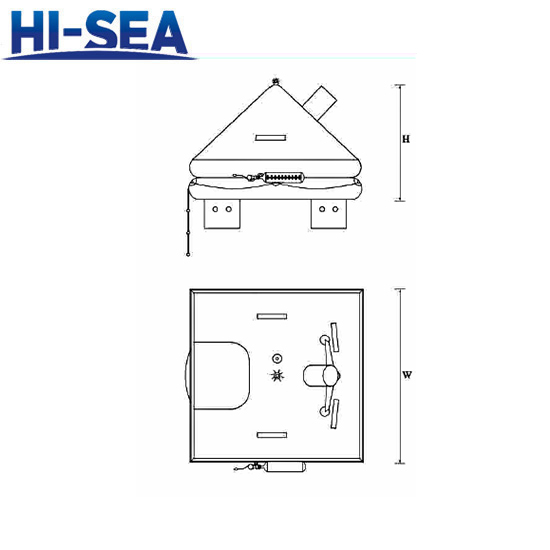

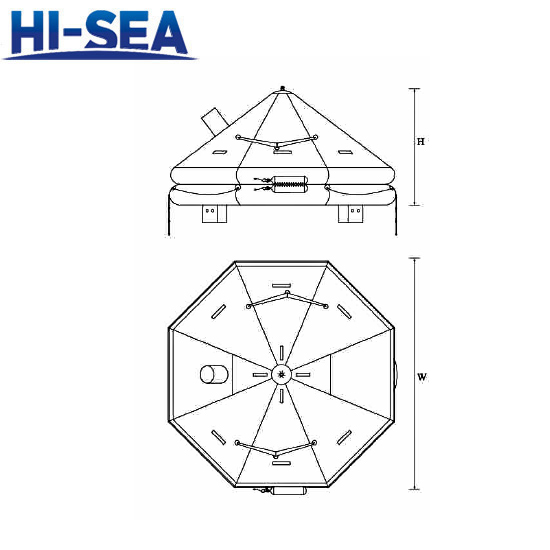

Drawing For Fishing Inflatable Liferaft
