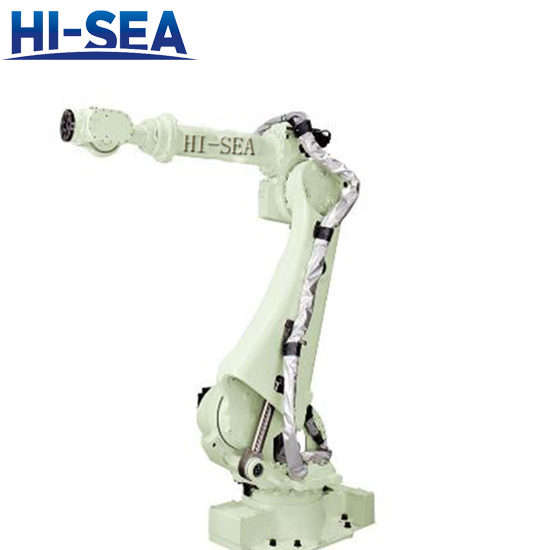

FD-V210 transfer spot welding robot


FD-V210 transfer spot welding robot

Characteristics:

1. Smart and easy to operate

2. Shortening of beat time

3. Small model of the control cabinet

4. Small, lightweight teaching box

5. The maintenance is simple and convenient

Robot parameters:

Type

FD-V210

Number of axes

6

Load

210kg

Repeatability

±0.15mm

Range of motion

Basic axisJ1

±180°

Basic axisJ2

80°~60°

Basic axisJ3

146.5°~150°

Arm shaftJ4

±360°

Arm shaftJ5

±130°

Arm shaftJ6

±360°

Maximum speed

Basic axisJ1

2.01rad/s115°/s

Basic axisJ2

1.83rad/s105°/s

Basic axisJ3

1.97rad/s113°/s

Basic axisJ4

2.44rad/s140°/s

Basic axisJ5

2.32rad/s133°/s

Basic axisJ6

3.49rad/s200°/s

Body weight

1040kg

Installation method

Floor-standing

Min application

be used in laser hybrid welding, arc welding, thermal spraying, spot welding, gluing, handling, etc.


Range of motion
