Dredge Suction Rubber Hose



Dredge Suction Rubber Hose



Application

Dredge suction rubber hose is installed between the mud pump and the cutter of the dredge to withstand the negative working pressure and suction the slurry.

For more dredge suction rubber hose specifications, please click here.

Features

1. Suitable working temperature: -20℃ to +50℃.

2. Durable and flexible to use.

3. Easy installation, Excellent abrasion-resistant and bending -resistant.

4. The product can be customized according to clients' requirements.

Structure and Material

1. Inner rubber: black abrasion resistant natural rubber.

2. Reinforcement layer: multiple plies of polyester fabric with a spring steel helix wire.

3. Cover rubber: neoprene or composed of natural rubber and synthetic rubber.

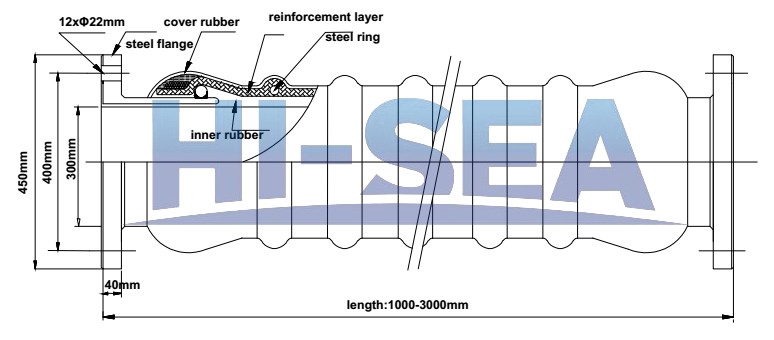

Drawing of Dredge Suction Rubber Hose


Technical Parameters

DN

(mm)

Flange OD

(mm)

Flange thickness

(mm)

Bolt hole

Length

(mm)

Wall thickness

(mm)

P.C.D.

(mm)

No.

Hole dia.

(mm)

300

450±3

40±2

400±1

12

22±1

1000-3000

31-32

350

505±3

40±2

460±1

16

22±1

1000-3000

31-32

400

585±3

40±2

540±1

16

25±1

1000-3000

34-37

500

670±3

45±2

620±1

20

25±1

1000-3000

35-37

550

780±3

45±2

710±1

20

25±1

1000-3000

35-37

600

790±3

45±2

740±1

20

27±1

1000-3000

40-45

650

920±3

50±2

820±1

24

27±1

1000-3000

40-45

700

960±3

50±2

860±1

24

27±1

1000-3000

40-45

750

980±3

55±2

890±1

24

30±1

1000-3000

40-45

800

1120±3

60±2

950±1

24

33±1

1000-3000

45-47

850

1150±3

60±2

1050±1

24

36±1

1000-3000

45-47

900

1250±3

60±2

1130±1

28

39±1

1000-3000

50-52

1000

1300±3

65±2

1220±1

32

33±1

1000-3000

55-58

1200

1515±3

65±2

1420±1

32

33±1

1000-3000

55-58

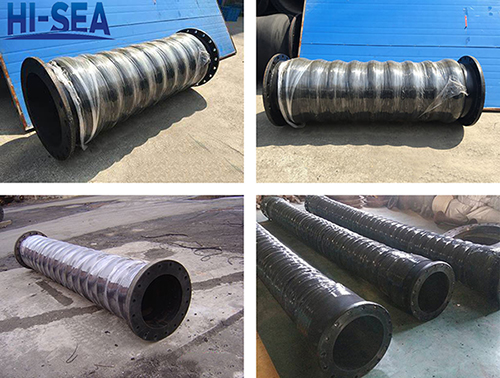

Image of
Dredge Suction Rubber Hose
