DN800 Dredge Suction Rubber Hose

DN800 Dredge Suction Rubber Hose

Application
DN800 dredge suction rubber hose is installed between the mud pump and the cutter of the dredge to withstand the negative working pressure and suction the slurry.

Features
1.Suitable working temperature:-20℃ to +50℃.
2.Durable and flexible to use.
3.Easy installation, Excellent abrasion-resistant and bending -resistant.
4.The product can be customized according to clients' requirements.

Structure and Material
1.Inner rubber:black abrasion resistant natural rubber.
2.Reinforcement layer:multiple plies of polyester fabric with a spring steel helix wire.
3.Cover rubber:neoprene or composed of natural rubber and synthetic rubber.

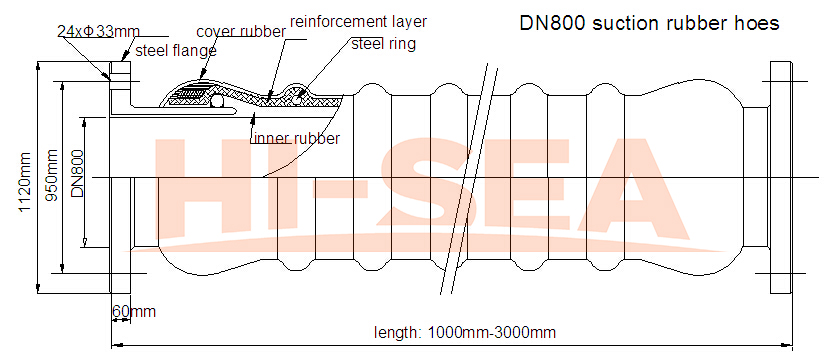

Drawing of DN800 Dredge Suction Rubber Hose

Technical Specifications

DN	Flange OD	Flange Thickness	Bolt Hole			Length	Wall Thickness
			P.C.D	No.	Hole Dia.
mm	mm	mm	mm		mm	mm	mm
800±5	1120±3	60±2	950±1	24	33±1	1000-3000	45-47
