Dredge PE Pipe & Dredge Floater

Dredge PE Pipe & Dredge Floater

Application

Dredge PE Pipe

Dredge polyethylene pipes equip with dredge floaters can be floating on the water. As the discharge pipelines,PE pipes is the best choice for dredgers. Dredge polyethylene pipes have two types: Dredge HDPE Pipes, Dredge UHMWPE Pipes.

Dredge PE Pipes has manufactured and welded with the fittings as PE Flanged pipes or PE Two Flanged Pipes. The Dredging Pipes welded with two HDPE Flange Adapter and two Steel Flanges to be connect the pipes to each other and covered  with Floaters – Floating Clamps to keep on the above sea.

Dredge Floater
Dredge floaters is the important part for dredge discharge pipelines,widely used in dredging industry.

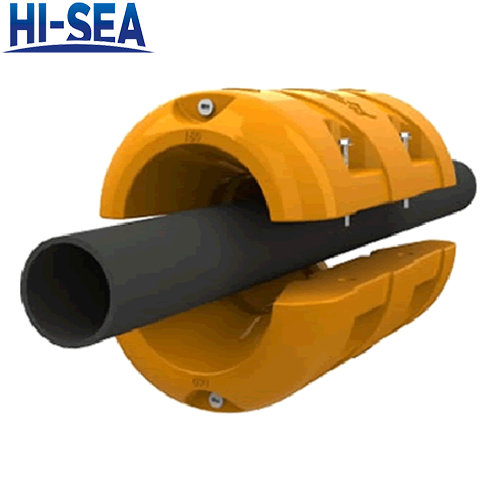

Dredge floaters are made from wear resistance MDPE by rotational molding technology. A floater consists of two MDPE shells filled with PU foam and connected by galvanized bolts, nuts and washers. The reasonable structure makes it perform well in tough dredging condition.

For more dredge PE Pipe & Dredge Floater specifications, please click here.

Features

Dredge PE Pipe

1. Made by High Density Polyethylene material(PE, HDPE, UHMWPE).

2. Preffered for agricaltural applications, dredge of mud, mining projects

3. Using together with floaters filled by Polyurethane (foam) material.

4. Range from PE80 or PE100

Dredge Floater

1. Made from high wear resistant LMDPE by rotational molding technology

2. Used for supporting suction/discharge hoses

3. Composed of two MDPE shells filled with PU foam and connected by galvanized bolts, nuts and flat washers.

Dredge PE Pipe & Dredge Floater Classification

Dredge PE Pipe & Dredge Floater Classification
Dredge PE Pipe	Dredge Floater

Technical Specification

DN(mm)	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11
	Working Pressure (Mpa)
	0.4	0.6	0.8	1	1.25	1.6
	(Thickness of Pipe---mm)
140	5	6	7	8	10	13
160	7	7.5	8	10	12	15
180	7	7.5	9	11	13	17
200	7.5	8	10	12	15	18
225	7.5	9	11	13	17	21
250	8	10	12	15	18	23
280	9	11	13	17	21	25
315	10	12	15	19	23	29
350	12	14	17	21	26	32
400	12	15	19	24	29	36
425	13	15	20	25	33	42
450	14	17	21	27	34	45
500	15	19	23	30	37	48
560	17	21	26	33	41	51
630	19	24	30	37	46	57
710	21	27	33	42	52
800	24	30	38	47	58
850	26	32	40	50
900	28	34	42	53
950	30	36	45	56
1000	31	38	47	59
1050	32	40	49	61
1100	33	42	51	63
1150	35	44	53	66

Pipe I.D.	Thickness of Pipe	Floater I.D.	Floater O.D.	Floater Length	Thickness of Plastic	Net Buoyancy
mm	mm	mm	mm	mm	mm	KGS/Floater
200	6	220	500	800	7	200
285	6	300	700	1200	7	420
350	6	375	1100	1100	7	920
400	8	414	1100	1200	8	1020
414	8	430	1200	1200	8	1200
450	8	480	1300	1300	8	1500
500	10	580	1400	1500	9	2219
550	10	580	1400	1600	10	2310
600	10	630	1400	1700	11	2400
650	10	680	1480	1800	11.5	2930
700	12	730	1600	1900	12	3593
750	12	780	1600	2000	13	3800
800	15	830	1800	2000	14	4800
850	15	880	1800	2200	15	5140
900	18	940	2200	2500	16	8180

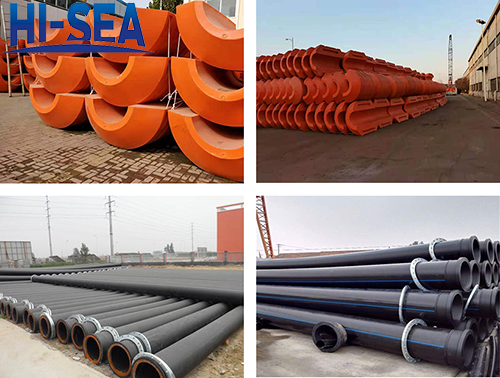

Dredge PE Pipe & Dredge Floater in Factory

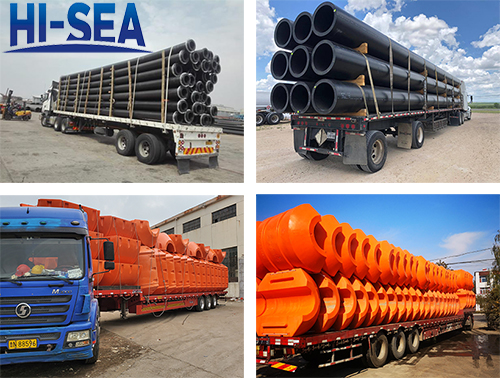

Delivery Image Dredge PE Pipe & Dredge Floater
