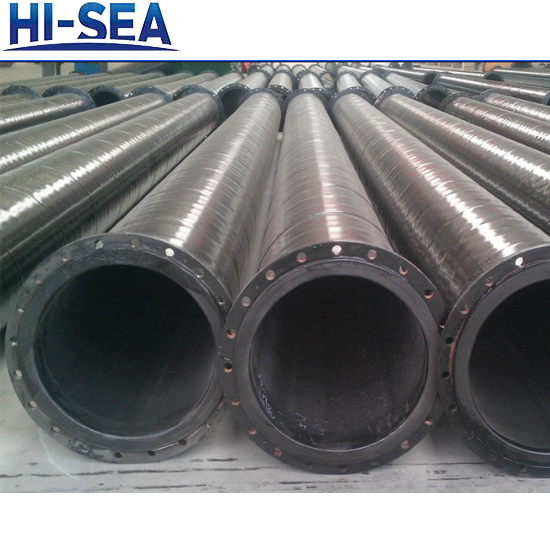

Dredge HDPE Pipe

Dredge HDPE Pipe

Application
Dredge HDPE Pipes are applicable for dredging.They are usually used to transport mud,sand and slurry.The pipes is made from wear resistant HDPE mixed with anti-UV material by extrusion molding technology. A dredge HDPE pipe, also known as a dredge high-density polyethylene pipe, is a type of pipe specifically designed for use in dredging operations. HDPE (high-density polyethylene) is a thermoplastic polymer known for its strength, durability, and resistance to abrasion, corrosion, chemicals, and UV radiation.

Features
1.Non-toxic: no heavy metal additives, would not be covered with dirt or contaminated by bacterium.
2.Corrosion Resistant: resist chemical matters or electron chemical corrosion.
3.Lower Installation Costs: light weight and easy installation can reduce installation costs by as much as 50% over metal piping system.
4.Higher Flow Capacity: smooth interior walls result in lower pressure loss and higher volume than metal pipe.
5.Longevity: more than 50 years under proper use.
6.Recycled and Environment-friendly.

Material
High density polythene(PE80,PE100)

Technical Specifications

DN (mm)	Standard Dimensions
	SDR33	SDR26	SDR21	SDR17	SDR13.6	SDR11
	Working Pressure(MPa)
	0.4	0.6	0.8	1.0	1.25	1.6
	Thickness of Pipe(mm)
140	5	6	7	8	10	13
160	7	7.5	8	10	12	15
180	7	7.5	9	11	13	17
200	7.5	8	10	12	15	18
225	7.5	9	11	13	17	21
250	8	10	12	15	18	23
280	9	11	13	17	21	25
315	10	12	15	19	23	29
350	12	14	17	21	26	32
400	12	15	19	24	29	36
425	13	15	20	25	33	42
450	14	17	21	27	34	45
500	15	19	23	30	37	48
560	17	21	26	33	41	51
630	19	24	30	37	46	57
710	21	27	33	42	52	-
800	24	30	38	47	58	-
850	26	32	40	50	-	-
900	28	34	42	53	-	-
950	30	36	45	56	-	-
1000	31	38	47	59	-	-
1050	32	40	49	61	-	-
1100	33	42	51	63	-	-
1150	35	44	53	66	-	-

Note:The product can be customized.
