Dredge Gate Valve

Dredge Gate Valve

Application

A dredge gate valve is a specialized type of valve used in dredging operations to control the flow of water and materials through pipelines. It is typically installed in the discharge pipeline of a dredger, allowing for the regulation of material discharge and water flow during dredging activities. The dredge gate valve is designed to withstand the harsh conditions encountered in dredging operations. It is typically made from durable materials such as cast iron or steel to provide strength and resistance to corrosion. The valve is equipped with a gate or blade that can be raised or lowered to control the flow of materials.

For more dredge gate valve specifications, please click here.

Features

1. Dredge gate valves are developed according to the specific requirements of pipe used for dredger.

2. Dredge gate valves drived by hydraulic, cylinder and sealed by rubber.

3. Stainless steel dredge gate and heat-affected valve body.

4. Simple structure, high resistance pressure and reliable seal.

5. Main mediums are sewage, water and oil.

6. Types:switch type and continous display type.

7. Dimensions range from DN300mm to DN1400mm.

8. Pressure up to 2.5Mpa.

Material

1. Hydraulic cylinder: body steel 45, piston rod 1Cr17Ni2

2. Valve body: Q235,16Mn.

3. Valve gate: stainless steel.

4. Seal: NBR, NR.

5. Fastener: Q235, Steel45, Stainless steel.

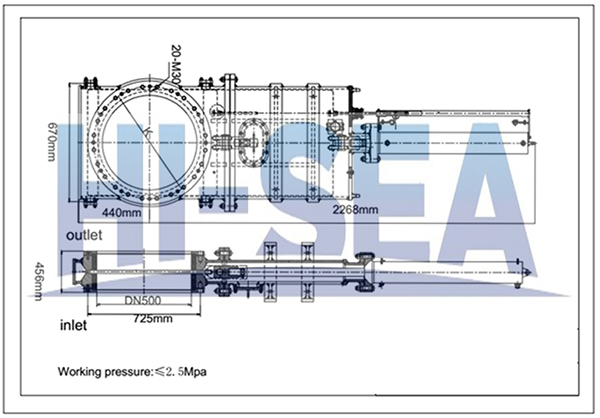

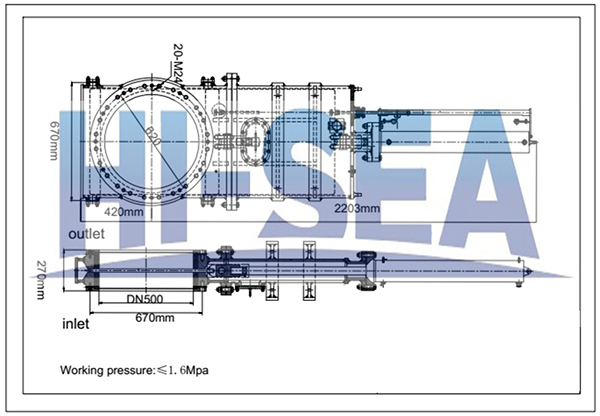

Drawing of Dredge Gate Valve

Technical Parameter

1. Working Pressure PN≤1.6Mpa
DN	H1(mm)	H2(mm)	b(mm)	d(mm)	K(mm)	D(mm)	n-Th
300	296	1628	478	240	400	460	12-M24
350	321	1753	528	240	460	505	16-M24
400	351	1928	568	260	515	565	16-M24
450	381	2048	618	260	565	615	16-M24
500	420	2203	670	270	620	670	20-M24
550	445	2348	720	270	675	730	20-M24
600	470	2483	770	280	725	780	20-M27
650	495	2765	830	280	785	835	20-M27
700	525	2955	900	318	840	895	24-M27
750	575	3088	940	340	890	965	24-M30
800	600	3258	1006	348	950	1050	24-M30
850	620	3385	1106	348	1000	1065	24-M30
900	665	3543	1126	388	1050	1115	28-M30
950	715	3700	1170	400	1105	1185	28-M30
1000	740	3965	1240	436	1180	1255	28-M33
1100	785	4280	1350	436	1270	1340	32-M33
1200	845	4550	1450	478	1380	1455	32-M36
1300	910	4900	1560	819	1485	1575	36-M36
1400	965	5200	1670	819	1590	1675	36-M42

2.Working Pressure PN≤2.5Mpa
DN	H1(mm)	H2(mm)	b(mm)	d(mm)	K(mm)	D(mm)	n-Th
300	350	1518	478	386	430	485	16-M24
350	370	1718	528	386	490	550	16-M24
400	380	1918	568	428	550	620	16-M27
450	405	2118	618	428	600	655	20-M27
500	440	2268	670	456	660	725	20-M30
550	470	2388	720	456	710	775	20-M30
600	485	2520	770	480	770	840	20-M33
650	525	2808	830	486	820	895	20-M33
700	565	3013	900	540	875	945	24-M33
750	750	3005	940	580	925	995	24-M33
800	625	3335	1006	600	990	1065	24-M36
850	645	3430	1106	600	1040	115	24-M36
900	695	3638	1126	670	1090	1165	28-M36
950	735	3790	1170	678	1140	1215	28-M36
1000	780	4100	1240	748	1210	1295	28-M42
1100	830	4380	1350	748	1320	1415	32-M42
1200	890	4600	1450	819	1420	1515	32-M42
1300	965	5000	1560	819	1530	1630	36-M42
1400	1025	5400	1670	819	1640	1760	36-M48

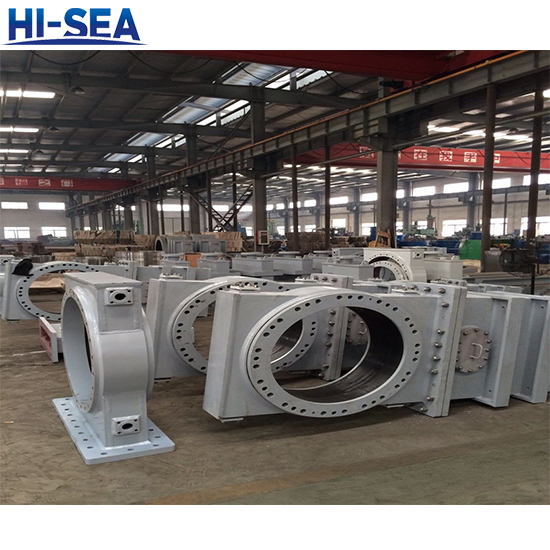

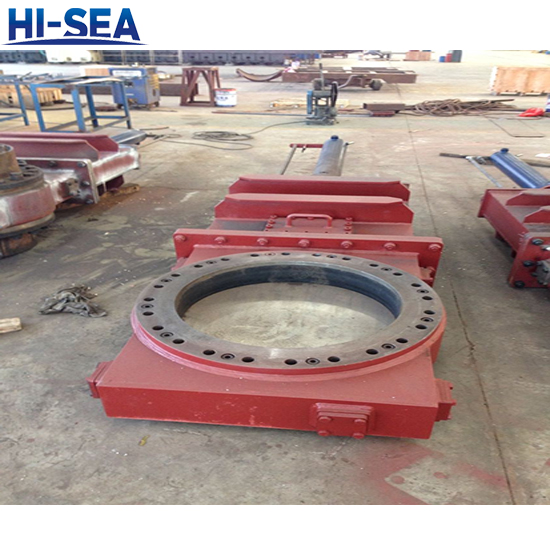

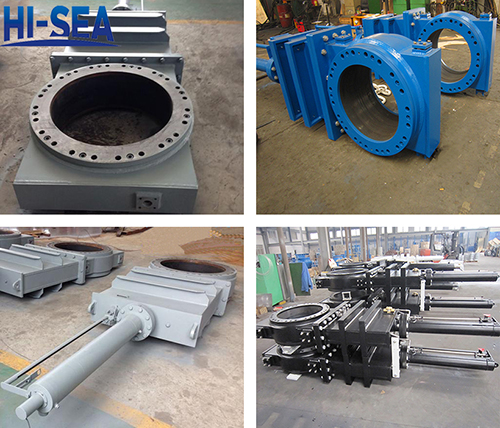

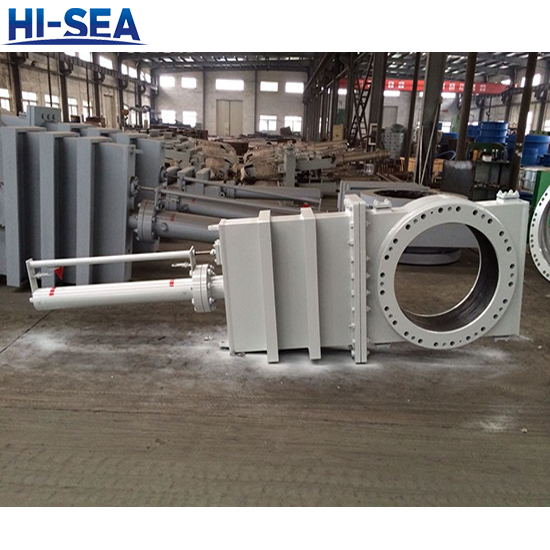

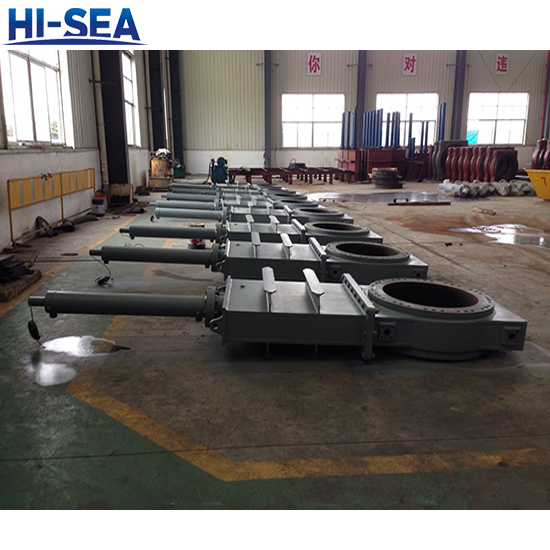

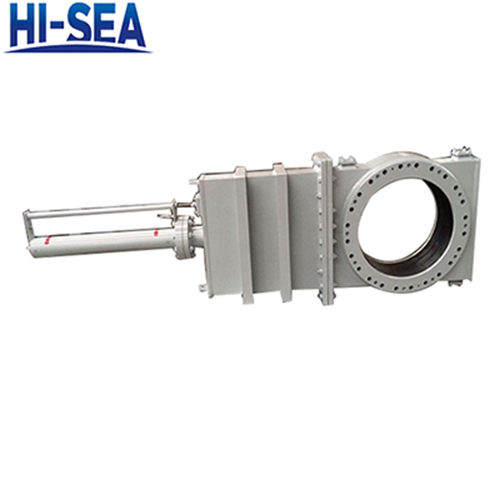

Image of Dredge Gate Valve
