Double Gypsy Anchor Windlass


Double Gypsy Anchor Windlass

Double Gypsy Anchor Windlass



Application

Double Gypsy Anchor Windlass is one of the most important deck machinery. It is driven by electric motor and used for engaging and lowering the anchors with chain. It is equipped with drum and can be used as a winch. According to the arrangement, there are single gypsy wheel windlass, double gypsy wheels windlass and combined windlass. It can be equipped with warping head.

Material

Cast steel, 316L stainless steel.

Advantages and Features

1. Contract structure, high strength;

2. Local control and remote control;

3. Easy installation, low maintenance;

4. Corrosion resistance, long lifespan;

5. Excellent operation, exquisite appearance;

6. Certificate: BV, RINA, LR...

7. Reliable service, high security;

8. Can be customized according to your requirements.

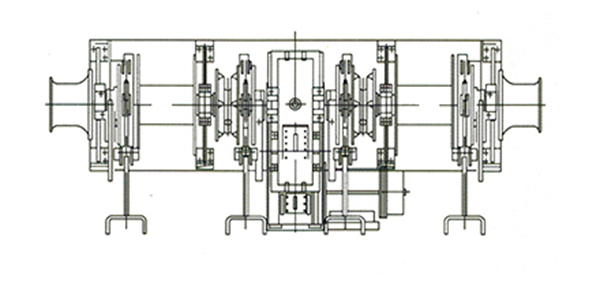

Drawing of Double Gypsy Anchor Windlass

Main Specification

Part Of Weighing Part Of Mooring
Chain Cable Dia. Nom.Pull Anchor Depth Nom.Speed Mooring load Nom.Speed Capacity W.E.Load
mm kN m m/min kN m/min m kN
19 15.3 82.5 ≥9 40 13.6 110 15
20.5 17.9
22 20.6
24 24.5 82.5 ≥9 20 10.5 80 20
26 28.7
28 33.3
30 38.3
32 43.5 82.5 ≥9 40 15 140 30
34 49.1
36 55.1
38 61.4 82.5 ≥9 50 18 140 40
40 68
42 75
