DZ Series Marine Electric Piston Pump

Overview

DZ Series marine electric piston pump without the transmission medium can be hard particles or fibers; the temperature is not higher than 85℃ water, fresh water, oil, drainage.

Structural Specifications

Performance Parameter

Project	Unit	DZ-100	DZ-250	DZ-500	DZ-1000	DZ-2000	DZ-3000	DZ-4000	DZ-5000	DZ-104
Dishead	MPa	0.19	0.29	0.29	0.29	0.29	0.29	0.29	0.29	0.29
Discharge	m3/h	0.1	0.25	0.5	1	2	3	4	5	10
Suction Head	m	4	5	5	5	6	6	6	6	6
Reciprocating number	-1/min	66	56	50	50	68	70	68	68	68
Travel	mm	28	42	64	64	80	90	120	120	120
Jar Dia.	mm	38	50	60	85	90	105	115	115	118
Sucia.	mm	15	23	23	50	50	50	60	60	80
Power	kW	0.18	0.25	0.37	0.55	0.75	1.1	1.5	2.2	3
Speed	rpm	1400	1400	1400	1400	1400	1400	1400	1420	1420
Weight	kg	15	27	27	37	47	120	140	140	230

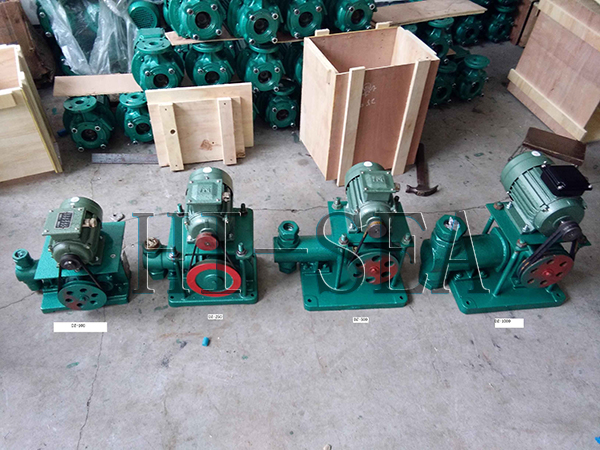

The Picture of DZ Series Marine Electric Piston Pump

Our Certification

The Certification of DZ

Related products for "DZ Series Marine Electric Piston Pump"
